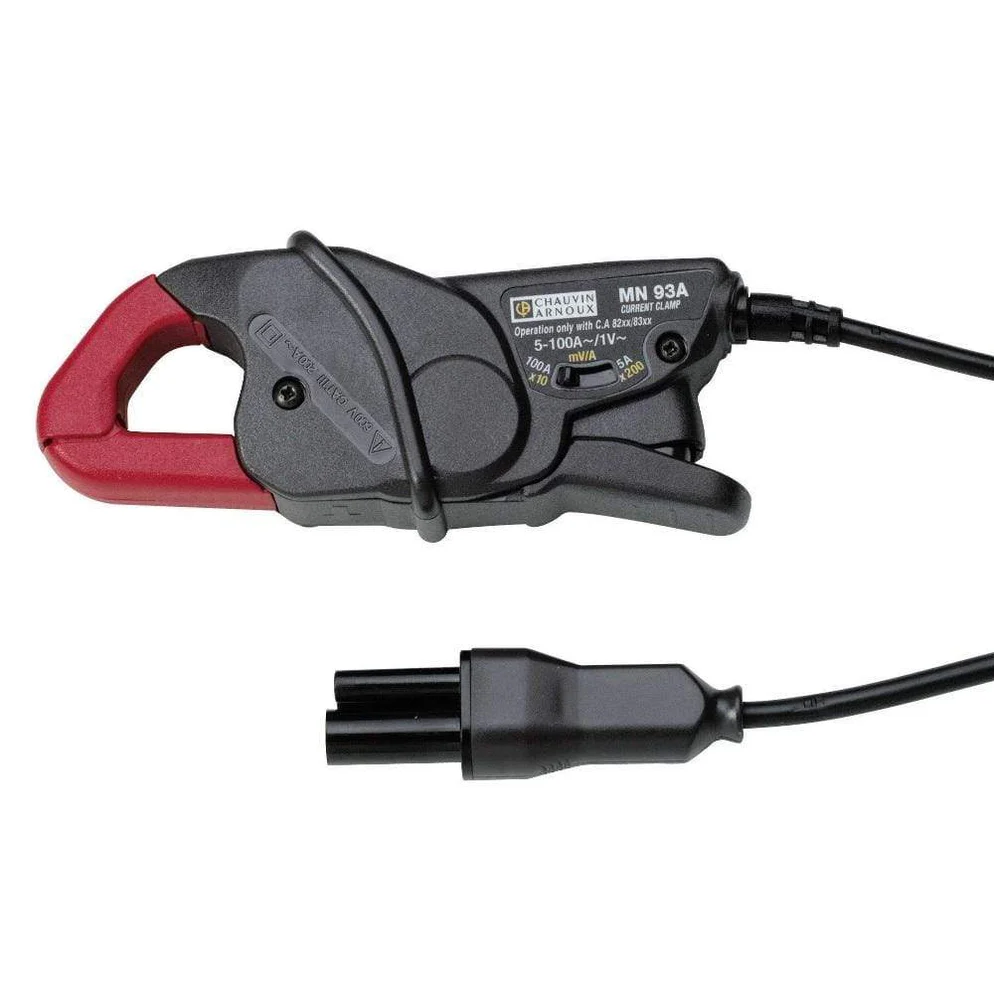

Chauvin Arnoux MN93A AC Current Probe

Description

The Chauvin Arnoux MN93A (P01120434B) is a compact, high-sensitivity AC current probe designed for measuring alternating currents up to 100 A. It is part of the versatile MN series of transformer clamps and is compatible with Chauvin Arnoux power quality analyzers and loggers, such as those in the Qualistar and PEL series.

Key Features

• High sensitivity: The probe has two distinct measurement ranges, 5 A and 100 A, allowing for better resolution and accuracy, particularly for lower currents.
• Measurement range: It measures AC current from 0.005 A to 100 A RMS.
• Output signal: The probe provides a voltage output signal that can be configured for different sensitivities, including 1 mV/A, 10 mV/A, or 100 mV/A.
• Compatibility: It is designed for use with Chauvin Arnoux power analyzers and loggers, including the C.A 8333 Qualistar+ and PEL104.
• Safety rating: The MN93A is rated 600 V CAT III / 300 V CAT IV according to the IEC 61010 standard.
• Ergonomic design: The clamp's compact size and ergonomic shape make it easy to use in tight or hard-to-reach locations. It has a clamping diameter of 20 mm for handling small conductors.
• Connectivity: It is equipped with a cable that is terminated with a four-pin connector for linking to compatible Chauvin Arnoux instruments.
