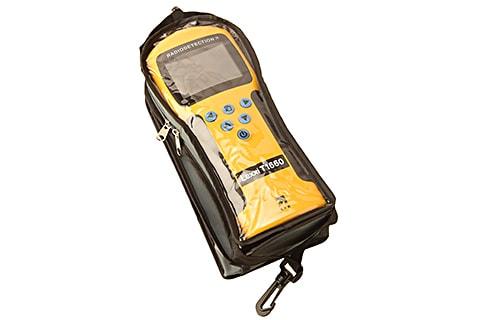

Lexxi T1660 TDR Time Domain Reflectometer / Network Analysis / Cable Test

Description

The Lexxi T1660 is a portable Time Domain Reflectometer (TDR) manufactured by Radiodetection, a brand with decades of experience in cable fault location. It is a rugged, handheld device used by technicians to quickly and accurately identify faults in a wide range of metallic cables.

Key Features

• High accuracy: The device offers 1% distance accuracy and resolution, allowing for precise fault location.
• Long range: It has a maximum range of 6 km (19,000 ft) and a minimum range of 7 m (23 ft).
• Dead zone: The T1660 has a short dead zone of just 0.5 meters, ensuring it can detect faults close to the testing point.
• Adjustable settings: Users can adjust the Velocity of Propagation (VoP) from 1% to 99% and select an output impedance of 25, 50, 75, or 100 ohms to match the specific cable being tested.
• Easy to use: With just six control buttons and a simple menu system, the T1660 is designed for user-friendliness.
• High-quality display: The device features a large, 3.5-inch, 328 x 256 pixel backlit color LCD that provides a clear view of the test results.
• Battery life: The T1660 typically provides up to 12 hours of continuous operation on six AA alkaline or NiMH rechargeable batteries.
• Durability: The unit is rated IP54 for protection against dust and water ingress, ensuring reliability in the field.
• Safety features: An optional Mains Blocking Filter module allows for safe testing on live 3-phase mains cables.
