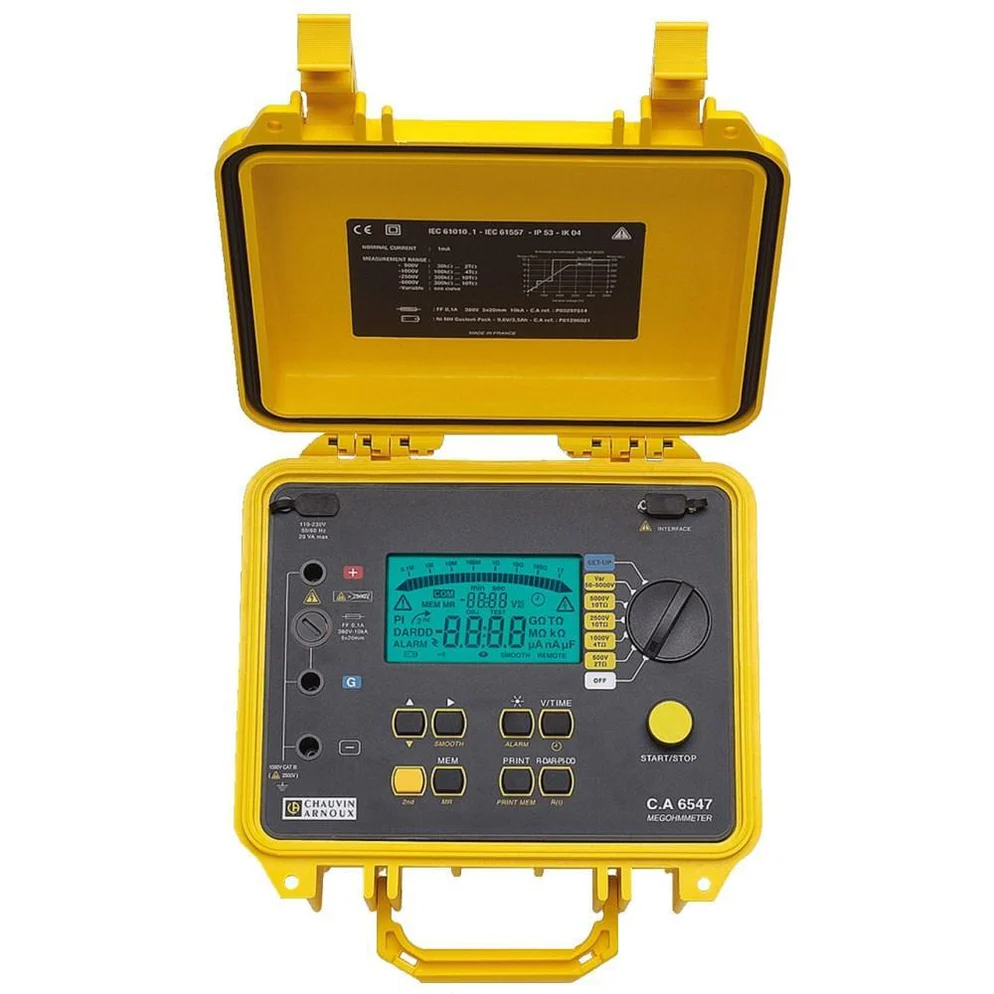

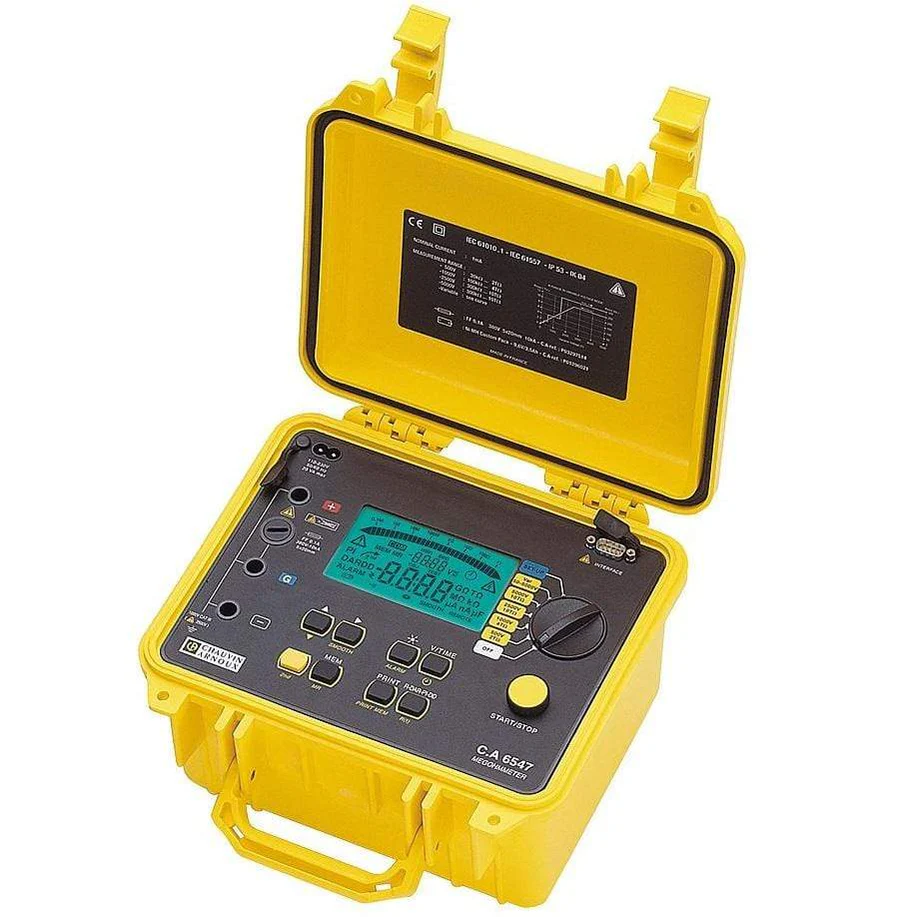

Chauvin Arnoux CA6547 Digital Insulation Tester, 5000V

Description

The Chauvin Arnoux CA6547 is a 5 kV digital insulation tester, also known as a megohmmeter. It is designed for quantitative and qualitative analysis of insulation on industrial equipment like cables, motors, generators, and transformers. The tester comes in a site-proof, self-contained carrying case.

Key Features

• Display: Large, backlit LCD screen with a digital display and a bar graph.
• Data storage: Internal memory can store several thousand measurements.
• Connectivity: Features a serial port (RS-232) for connecting to a PC and processing data with the included "Megohmeter" software.
• Programmable tests: Allows users to program the test duration and set alarms for high or low resistance.
• Rechargeable batteries: The unit is powered by rechargeable NiMH batteries, with an average battery life of about one month based on typical usage.
• Safety: Complies with IEC 61010-1 standards, rated CAT III 1000V or CAT I 2500V.
• Dimensions and weight: Measures 270 x 250 x 180 mm and weighs 4.3 kg.
• Measurement range: Measures insulation resistance from 10 kΩ to 10 TΩ.
• Test voltages: Offers four fixed test voltages: 500 V, 1000 V, 2500 V, and 5000 V.
• Adjustable voltage: The test voltage is also adjustable from 40 V to 5100 V, in steps of 10 V or 100 V.
• Other measurements: The CA6547 can also measure AC/DC voltage (1 to 5100 V), capacitance (1 mF to 49.99 F), and leakage current (0 to 3000 µA).
