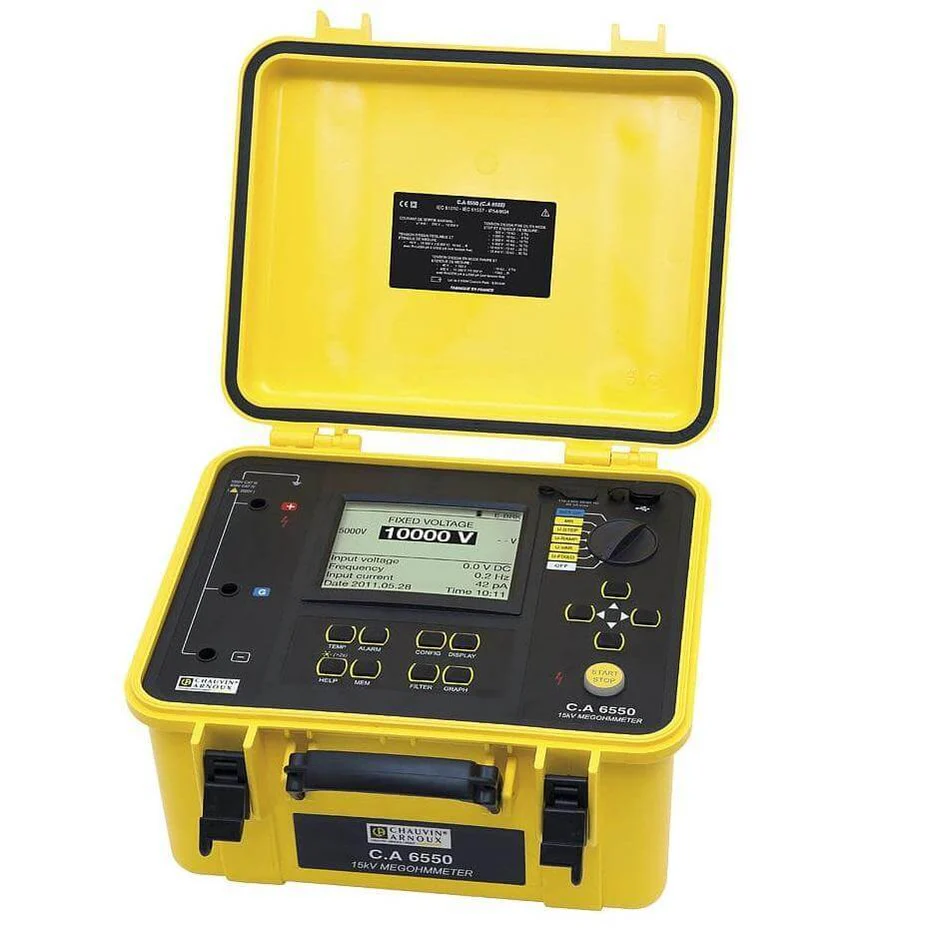

Chauvin Arnoux CA6550 10kV Megohmmeter

Description

The Chauvin Arnoux CA6550 is a 10 kV digital megohmmeter (insulation tester) used to check the insulation resistance on high-voltage electrical equipment during manufacturing, installation, and maintenance. It is suitable for a wide range of industries, including electricity companies, manufacturers, installers, and maintenance firms.

Key Features

• Advanced diagnostic testing: The megohmmeter performs automatic calculations for Polarization Index (PI), Dielectric Absorption Ratio (DAR), and Dielectric Discharge (DD).
• Multiple test modes: It supports various test modes, including step voltage, ramp voltage, and timed tests, as well as specialized modes like "burning" and "I-limit" for specific applications.
• Temperature correction: The device can calculate resistance values at a reference temperature, allowing for more consistent and accurate results.
• IEEE 43 compliance: The CA6550 complies with the IEEE 43 standard, which recommends insulation testing at 5–10 kV for equipment operating at 12 kV or higher.
• Rugged design: It comes in a durable, site-proof case to withstand harsh field conditions.
• PC interface: The included DataView software and USB communication cable allow for easy data transfer and the generation of reports
