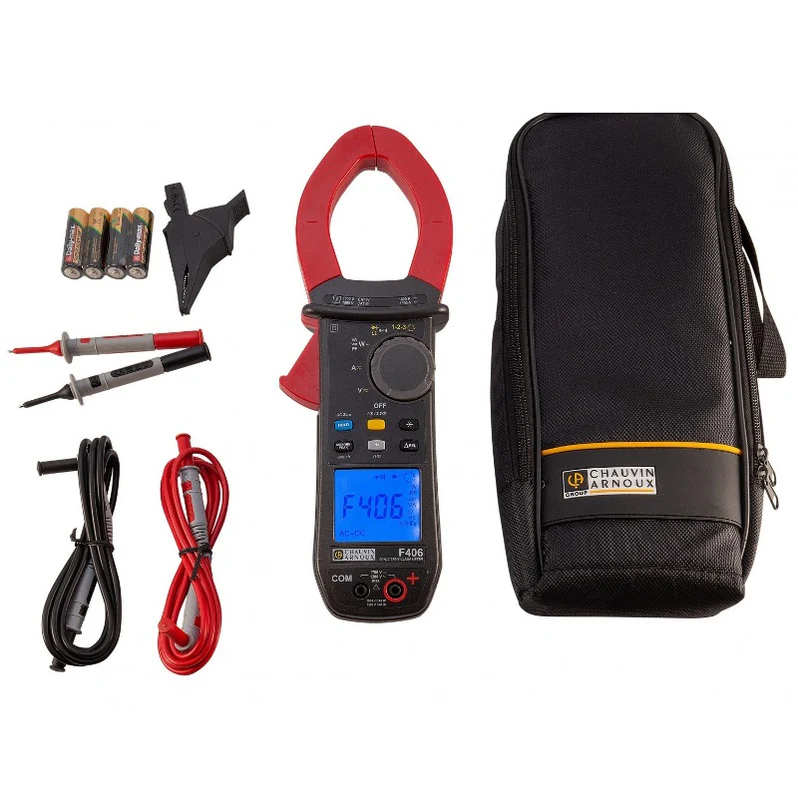

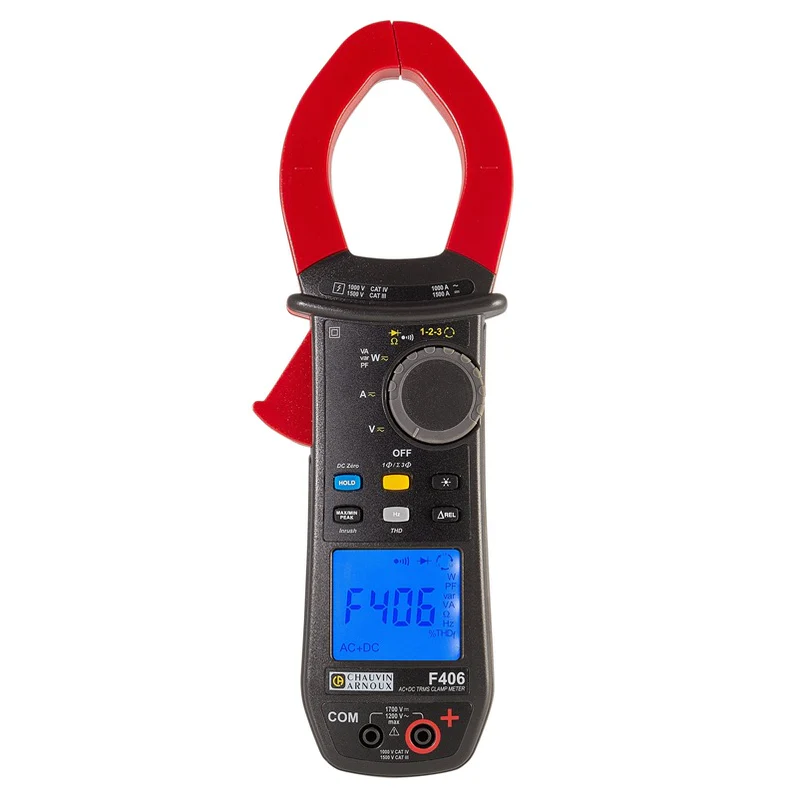

Chauvin Arnoux F406 TRMS Clamp Multimeter

Description

The Chauvin Arnoux F406 TRMS Clamp Multimeter (model P01120946) is a robust and accurate meter for maintenance, diagnostics, and monitoring on low- and medium-power electrical installations. Its True RMS (TRMS) measurement provides accurate readings on non-sinusoidal waveforms, with an IP54 protection rating that makes it suitable for challenging environments.

Key Features

• High-performance measurement: The F406 uses a 12-bit digital acquisition system for precise measurements regardless of the signal's waveform.
• Measurement functions: In addition to measuring AC and DC current and voltage, the meter can calculate power values (W, var, VA, PF), harmonic distortion (THDf, THDr), and phase rotation (2-wire method).
• Safety rating: The clamp multimeter has a CAT IV 1000V and CAT III 1500V safety rating for use in high-voltage environments.
• Auto AC/DC detection: This feature automatically detects whether the signal is AC or DC, simplifying the measurement process.
• Advanced analysis: The F406 can measure inrush current (TrueInrush), as well as perform relative (ΔX) and differential (ΔX/X) measurements.
• Backlit LCD screen: The large, backlit display is easy to read in poorly lit areas.
• Ergonomic design: The meter is designed for single-handed use, even when wearing gloves.
