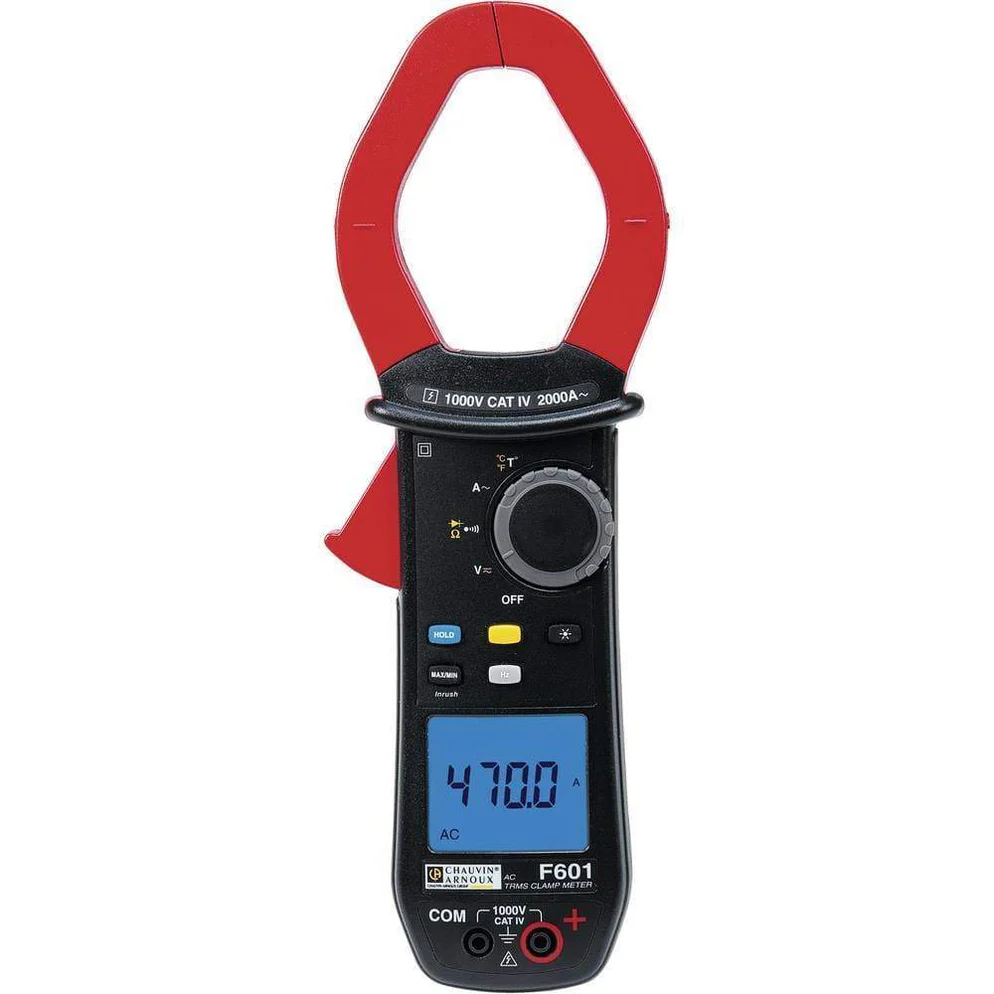

Chauvin Arnoux F601 True RMS AC Clampmeter

Description

The Chauvin Arnoux F601 is a high-performance, True RMS AC clamp meter designed for high-power applications. It is particularly suited for use in industrial settings, including electrical power distribution, metallurgy, and the chemical and petrochemical industries. A key feature is its large 60 mm jaw, which allows for non-contact measurement of AC currents up to 2,000 A.

Key Features

• Measurement functions: AC current, AC voltage, DC voltage, resistance, frequency, continuity with adjustable threshold, diode test, temperature with K-type thermocouple, and single- and three-phase power values.
• Display: Large, backlit LCD with a 10,000-count resolution.
• Response type: True RMS (AC) for accurate measurements of distorted waveforms.
• AC Current: Measures up to 2,000 A (3,000 A peak).
• AC Voltage: Measures up to 1,000 V (1,400 V peak).
• DC Voltage: Measures up to 1,400 V.
• Resistance: Measures up to 99.99 kΩ.
• Temperature (K type): Measures from -60 °C to +1,000 °C (-76 °F to +1,832 °F).
• Frequency: Up to 20 kHz for voltage and 1 kHz for current.
• Inrush Current: Measures true inrush (overcurrent) to capture motor startup spikes.
• Jaw capacity: 60 mm clamping diameter.
• Safety rating: CAT IV 1000V and CAT III 1000V, providing a high level of safety.
• Protection rating: IP54 dust and splash protection.
• Power supply: 4 x 1.5 V AA batteries.
• Dimensions/Weight: 111 x 296 x 41 mm / 640 g.
• Additional features: Min/Max recording, data hold, and auto-ranging.
