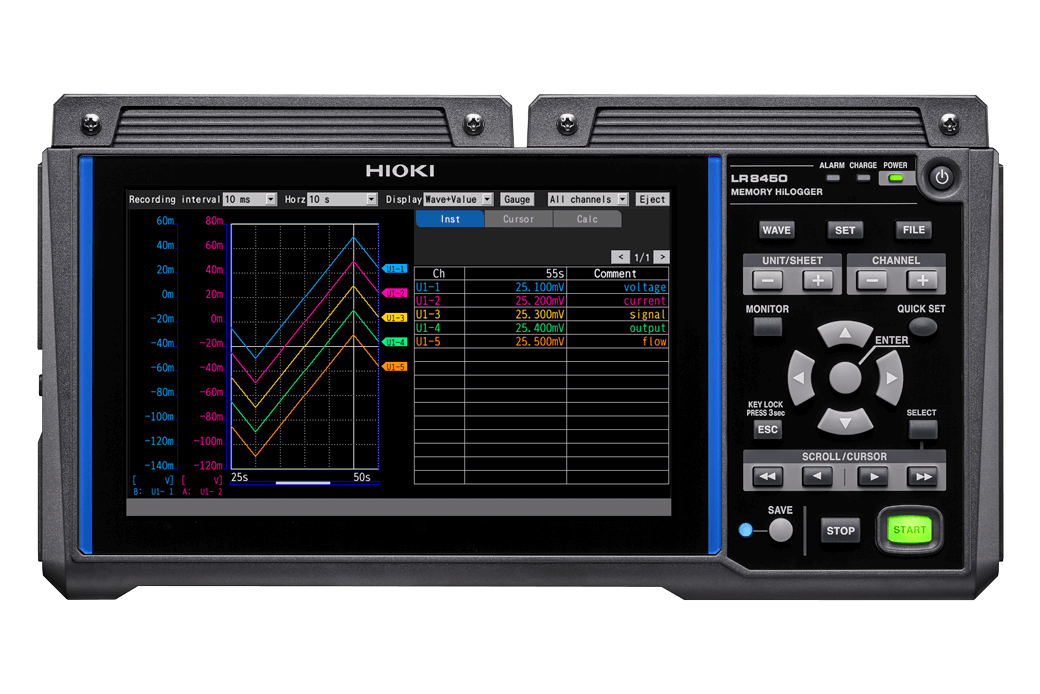

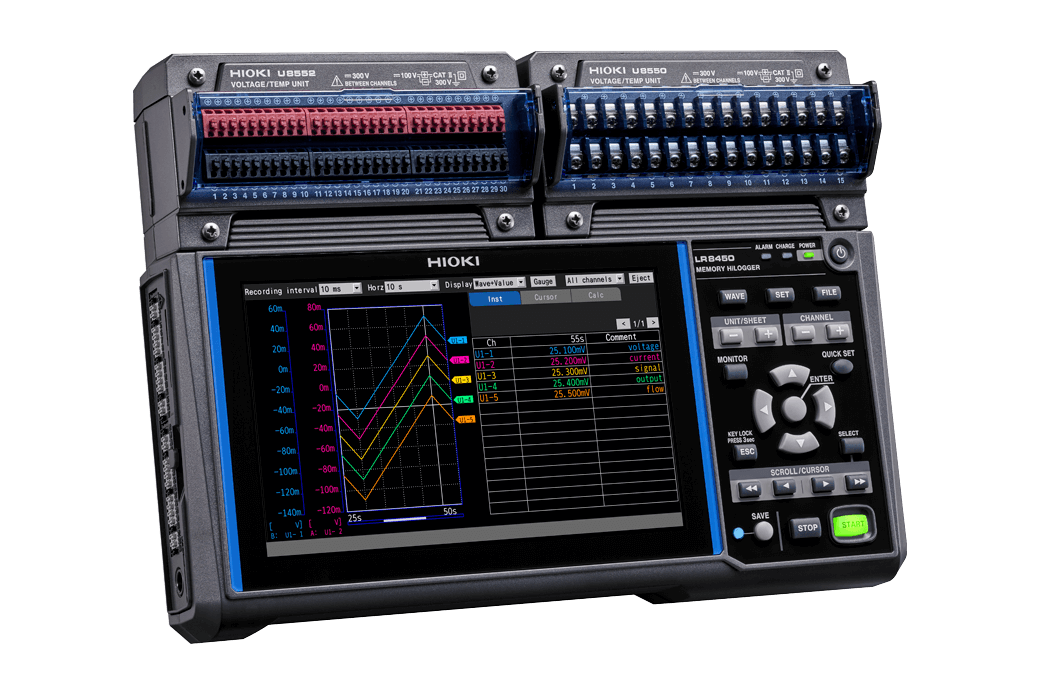

Hioki LR8450 Memory HiLogger, 120 channels

Description

The Hioki LR8450 Memory HiLogger is a versatile, high-speed data acquisition system that can expand to a maximum of 120 analog channels using a combination of plug-in input modules. It is highly valued for its noise resistance and speed, making it well-suited for industrial and automotive applications, especially those involving inverter-driven equipment.

Key Features

• High noise resistance: The LR8450 features a revamped design that significantly minimizes the effects of high-frequency noise, ensuring stable temperature logging near inverters and batteries.
• Connectivity: It offers a range of interfaces for data transfer and remote control, including LAN and USB ports. The LR8450-01 model adds wireless LAN capabilities.
• Display: A large 7-inch TFT color LCD provides a clear, real-time display of measurement data and waveforms.
• Data storage: Records to an SD memory card or USB drive.
• Power: Operates via an included AC adapter, external DC power (10 to 30 V), or an optional Z1007 Battery Pack for portability.
• Synchronization: Multiple LR8450 units can be synchronized for high-channel-count applications, up to 600 channels with 5 plug-in units.
• Maximum channel count: Up to 120 channels using wired plug-in modules. The wireless version, the LR8450-01, can expand to 330 channels with additional wireless units.
• Maximum sampling speed: Achieves a sampling rate of 1 ms (1 kHz) for certain modules, such as the U8553 High Speed Voltage Unit and U8554 Strain Unit.
