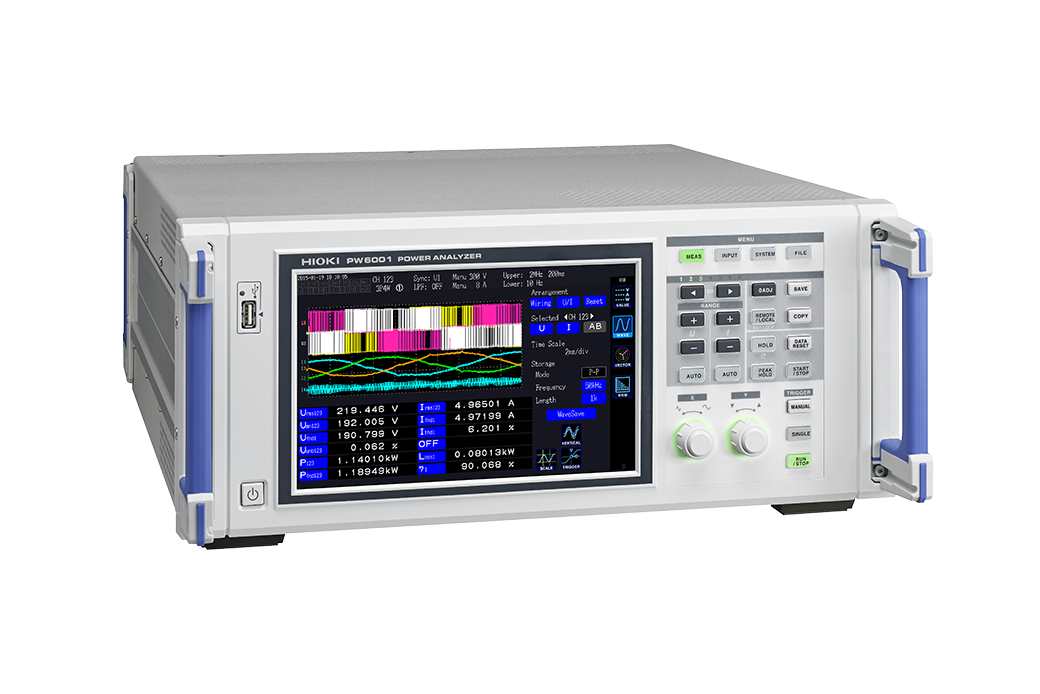

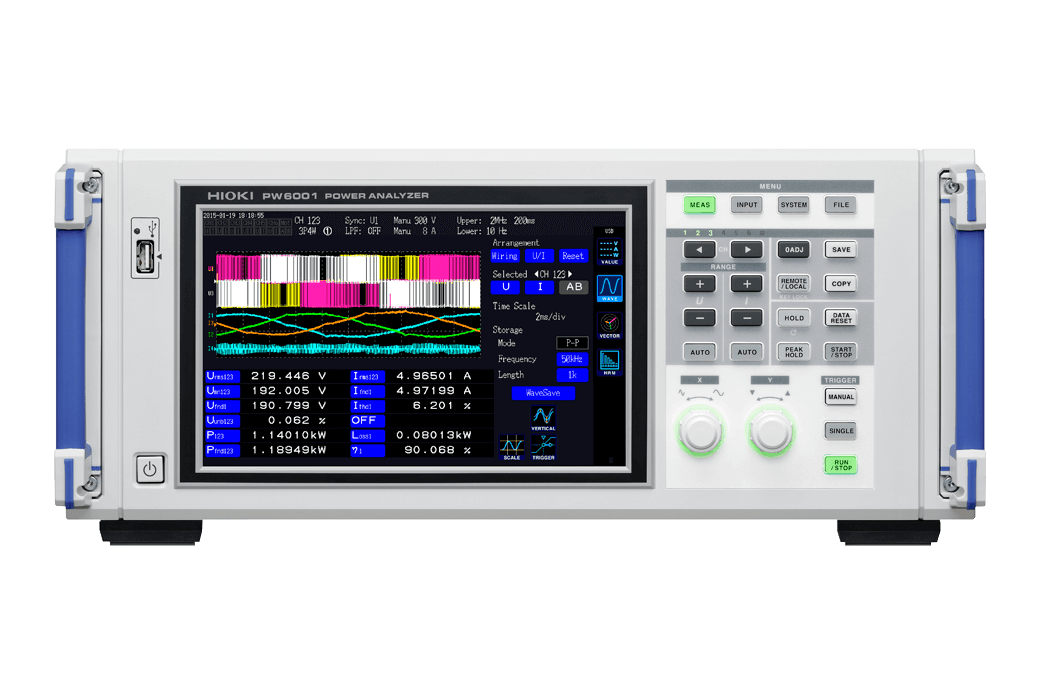

Hioki PW6001-02 High Precision Power Analyzer, 2 Channel

Description

The Hioki PW6001-02 is a high-precision, 2-channel power analyzer from Hioki's flagship PW6001 series. Like its single-channel counterpart (PW6001-01), it is designed for highly accurate and stable AC and DC power measurements, with the ability to measure next-generation power electronics such as silicon-carbide (SiC) inverters.

Key Features

• Current sensor phase shift: This exclusive function corrects for the phase error that current sensors introduce, ensuring accurate measurements, especially in high-frequency, low-power-factor applications.
• Noise and temperature resistance: A robust metal shield and optical isolation technology provide high noise immunity and superior temperature stability, ensuring stable measurements even in demanding environments.
• Waveform and motor analysis: It includes special triggers and analysis functions to perform detailed waveform analysis without an oscilloscope. It can display voltage, current, torque, and encoder signals simultaneously.
• Harmonic analysis: Offers standard wideband harmonic analysis up to the 100th order with a 1.5 MHz analysis band.
• Multi-unit synchronization: Up to two 6-channel PW6001 models can be connected via an optical cable to create a 12-channel system for multi-point measurements.

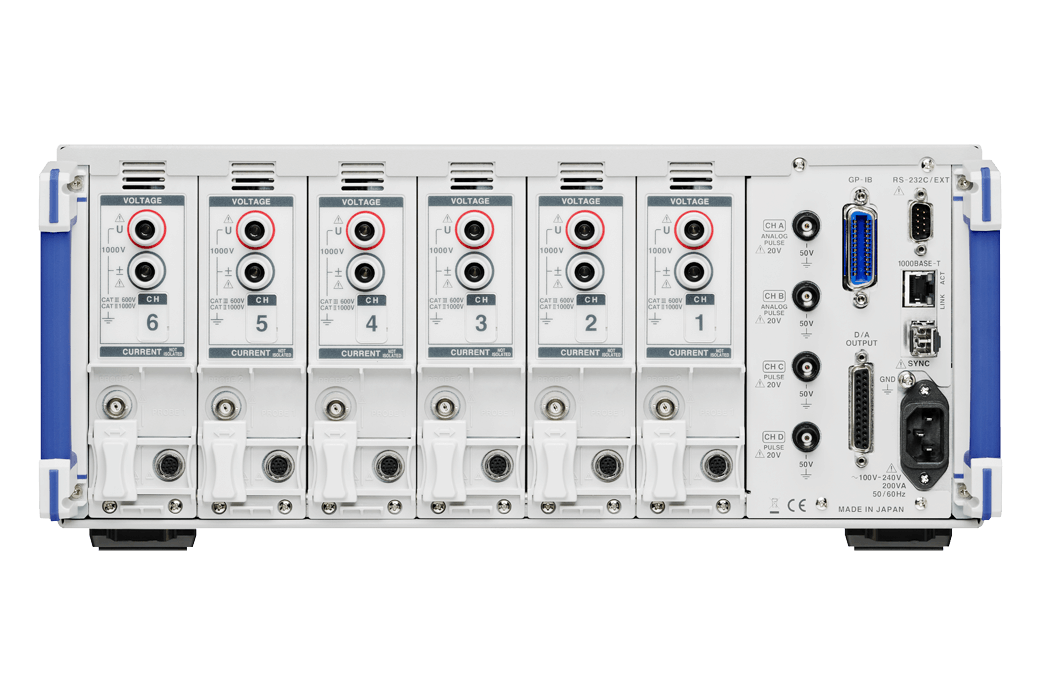

• Connectivity: Includes multiple interfaces for external communication, such as LAN, USB (for memory and communication), GP-IB, and RS-232C.
