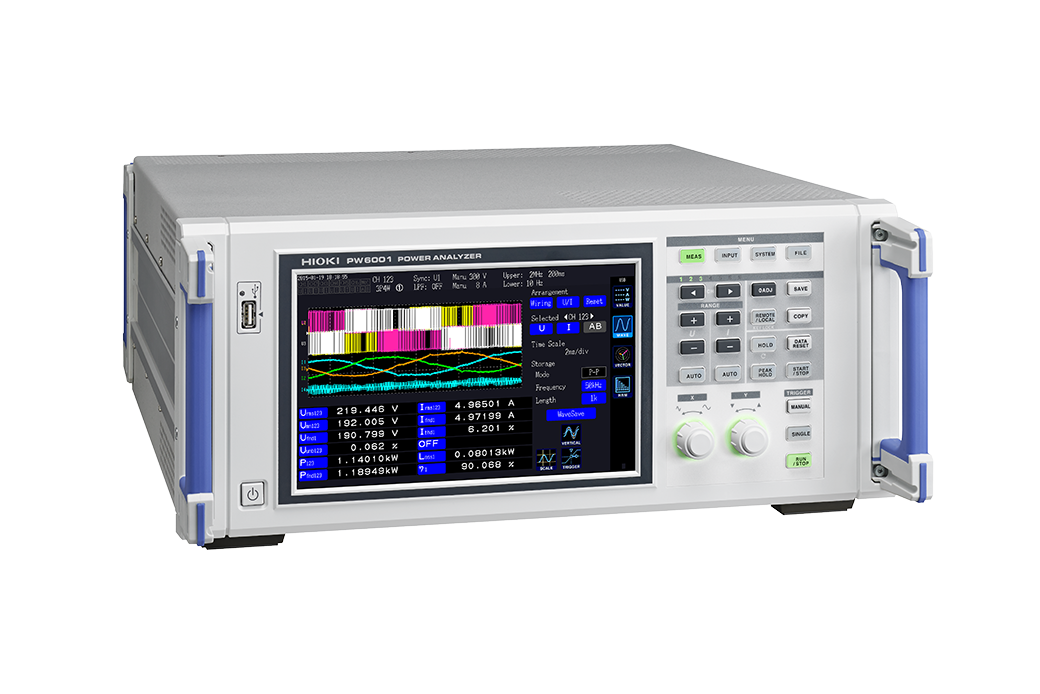

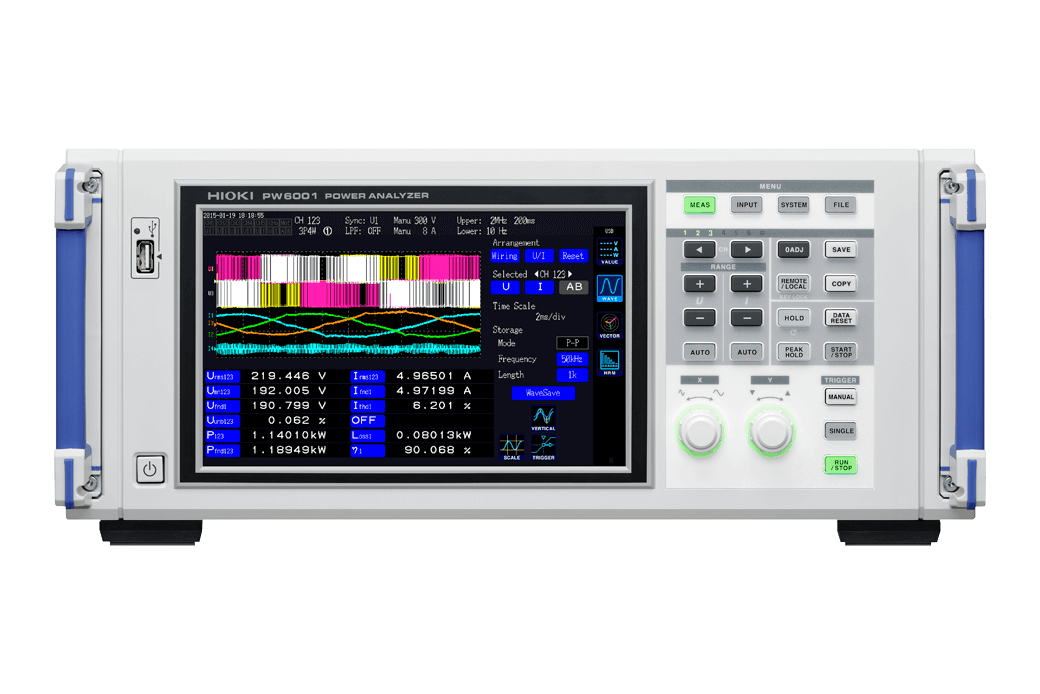

Hioki PW6001-06 High Precision Power Analyzer, 6 Channel

Description

The Hioki PW6001-06 is a high-precision, 6-channel power analyzer and is a part of Hioki's flagship PW6001 series. Like the other models in the series, it offers world-class measurement accuracy, a wide frequency bandwidth of DC, 0.1 Hz to 2 MHz, and exceptional noise resistance. The key feature of the -06 model is its six independent input channels for simultaneous voltage and current measurements.

Key Features

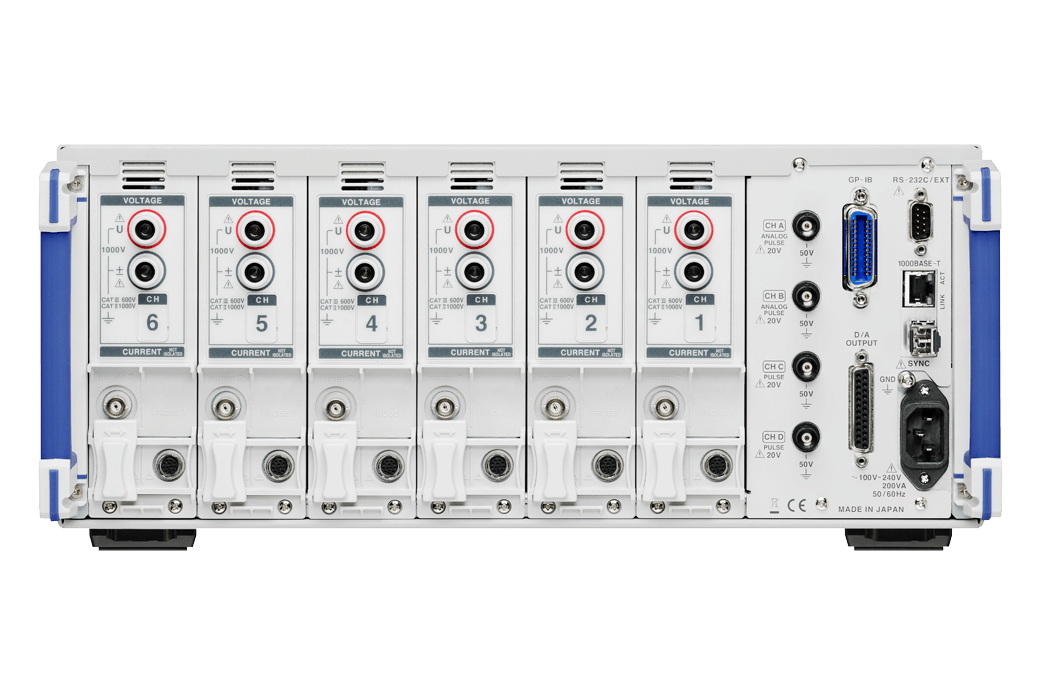

• Measurement channels: 6 channels for simultaneous voltage and current input.Basic power accuracy: The analyzer provides a basic power accuracy of \(\pm 0.02\%\).
• Combined accuracy: When combined with a current sensor, the instrument still delivers a high accuracy of \(\pm 0.07\%\).
• Frequency bandwidth: Supports a wide frequency range from DC, 0.1 Hz to 2 MHz, enabling the analysis of modern switching devices like silicon-carbide (SiC) inverters.
• Sampling rate: A high-speed sampling rate of 5 MS/s (million samples per second) with an 18-bit A/D converter (TrueHD) ensures precise analysis of dynamic and fluctuating loads.
• Data refresh rate: A fast 10 ms data refresh rate is available while maintaining maximum accuracy.
• Noise and temperature resistance: Features a solid metal shield and optical isolation, providing high noise immunity (80 dB/100 kHz CMRR) and stable temperature characteristics.
• Measurement line types: Supports various configurations, including single-phase 2-wire, single-phase 3-wire, three-phase 3-wire, and three-phase 4-wire measurements.
