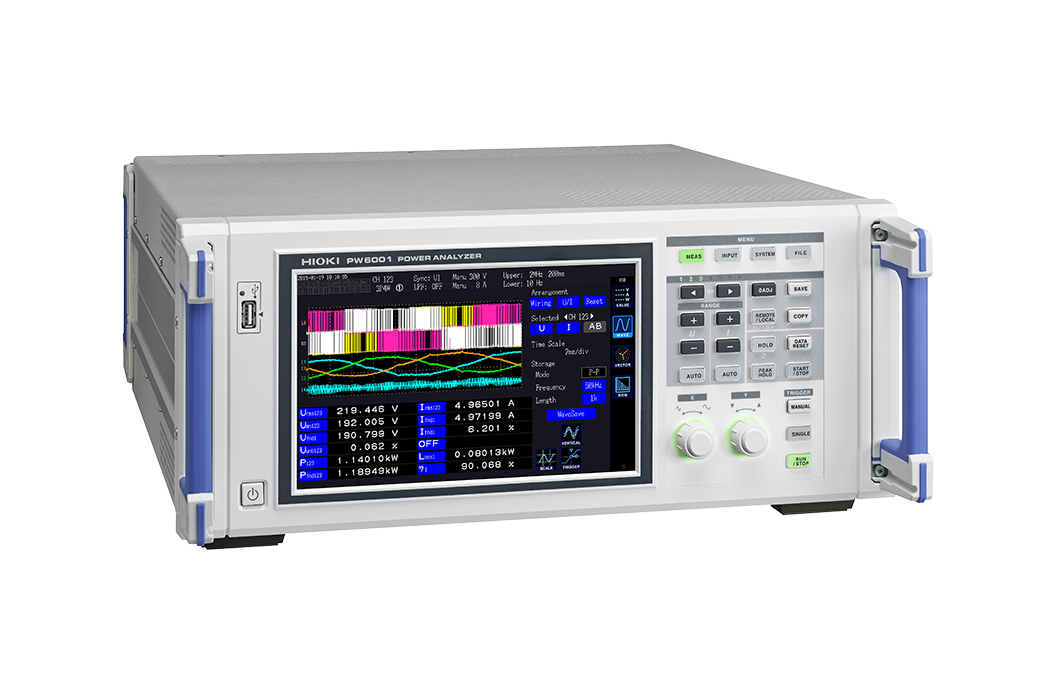

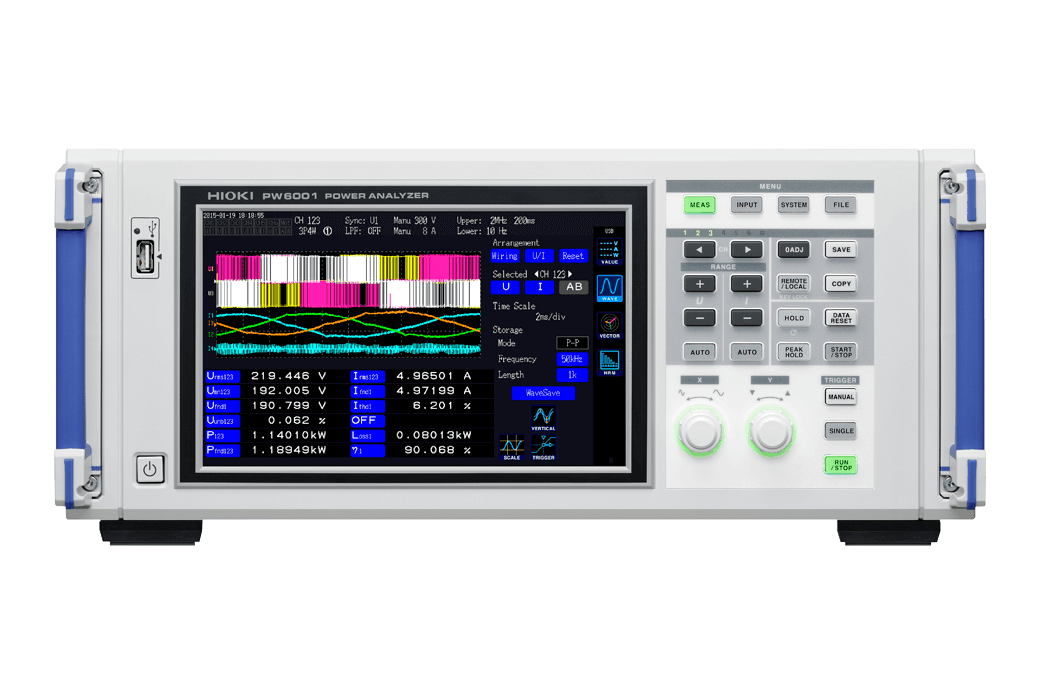

Hioki PW6001-14 High Precision Power Analyzer, 4 Channel, Motor Analysis, D/A Output

Description

The Hioki PW6001-14 is a high-precision, 4-channel power analyzer from the flagship PW6001 series that includes built-in motor analysis and D/A (digital-to-analog) output functionalities. It is engineered for highly accurate and stable AC and DC power measurements, with the ability to measure next-generation devices like silicon-carbide (SiC) inverters.

Key Features

• Measurement channels: 4 channels for simultaneous voltage and current input.Basic power accuracy: \(\pm 0.02\%\) (instrument accuracy only).Combined accuracy: \(\pm 0.07\%\) with a current sensor.
• Frequency bandwidth: A wide DC, 0.1 Hz to 2 MHz range.Sampling rate: High-speed 5 MS/s sampling rate with an 18-bit A/D converter (TrueHD) for accurate analysis of PWM waveforms and fluctuating loads.
• Data refresh rate: A fast 10 ms refresh rate while maintaining maximum accuracy.
• Noise resistance: High noise resistance and stability (80 dB/100 kHz CMRR) through a metal shield and optical isolation.
• Measurement line types: Compatible with single-phase 2-wire, single-phase 3-wire, three-phase 3-wire, and three-phase 4-wire systems.
