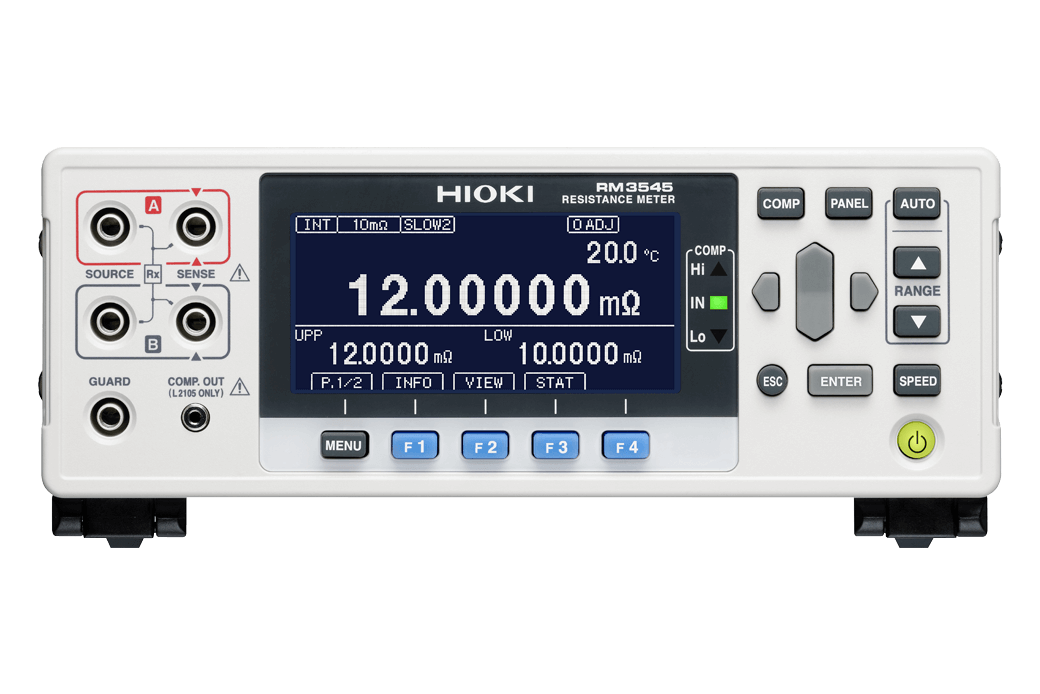

Hioki RM3545 Resistance Meter, 10mΩ to 1,000MΩ

Description

The Hioki RM3545 is a high-precision, benchtop DC resistance meter designed for advanced research and automated production lines. It is available in several models, including the RM3545, RM3545-01, RM3545-02, and RM3545A, with varying features and channel capabilities.

Key Features

• Measurement range: The meter can measure resistance from 1 nΩ to 1200 MΩ.
• High accuracy: The Hioki RM3545 offers a basic accuracy of 0.006%, allowing for precise measurements of various components.

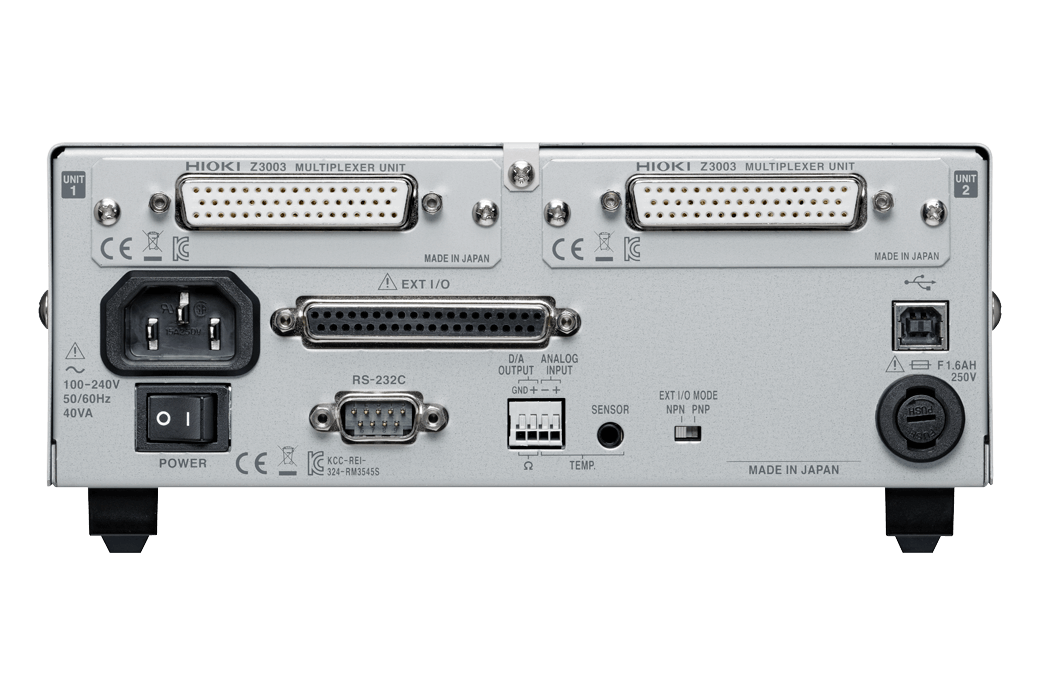

• Multiplexer function: An optional expansion board allows for the installation of a multiplexer function, which can perform automatic 4-terminal resistance measurements at up to 20 locations sequentially.
• Temperature correction: The RM3545 can use input temperature data from an optional Z2001 temperature sensor to perform temperature correction, which is useful in temperature-rise testing.
• Offset voltage compensation (OVC): The successor model, the RM3545A, has this function to correct the effects of thermoelectric EMF, which can cause unstable measurement values at low resistance.
• Low-power resistance measurement: The meter minimizes the effects of testing on a component's contact surface or insulation coating, which is useful for testing signal contacts.
• Contact check function: This feature checks for proper contact by measuring the resistance between the source and sense terminals and alerts you if resistance is too high.
