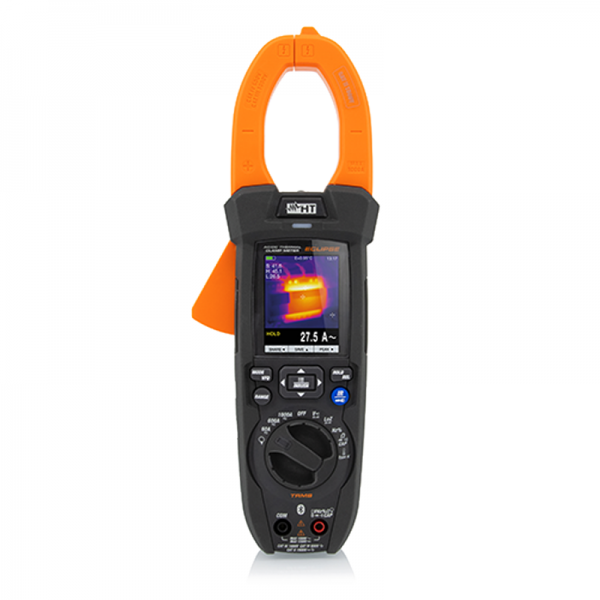

HT Instruments ECLIPSE AC/DC TRMS 1000A 1500V Clamp Meter with Thermal Imager

Description

The HT Instruments ECLIPSE Clamp Meter is a True RMS (TRMS) AC/DC clamp meter that features an integrated infrared (IR) thermal imaging camera. It is designed for professional use in electrical and photovoltaic (PV) applications, allowing for both standard electrical measurements and thermal scanning.

Key Features

• Integrated thermal imager: The standout feature is a built-in 80x80 pixel IR camera for thermal scanning. It has a temperature range of -4°F to 500°F and can capture up to 128 thermal images.
• High-voltage measurements: It is designed to measure AC current up to 1000A, DC voltage up to 1500V, and AC voltage up to 1000V. The high DC voltage capacity makes it suitable for photovoltaic installations.
• True RMS measurements: The meter uses True RMS technology to provide accurate readings on both sinusoidal and non-sinusoidal AC waveforms.
• Connectivity and data logging: The ECLIPSE has Bluetooth connectivity to transfer snapshots and recorded data to mobile devices using the HTMercury app. It can also log data for up to 34 hours.
• Additional functions: In addition to current and voltage, the meter measures resistance, frequency, capacitance, and temperature with an external K-type probe.
• Safety rating: It is rated for safety standard IEC/EN61010-1 with CAT IV 600V and CAT III 1000V protection.
• Display: The device has a color TFT display with a 6000-count resolution, backlight, and bargraph for visibility in poorly lit areas.
• Physical specs: According to tEquipment.net, the ECLIPSE can handle a maximum conductor size of 40mm (1.57 inches).
