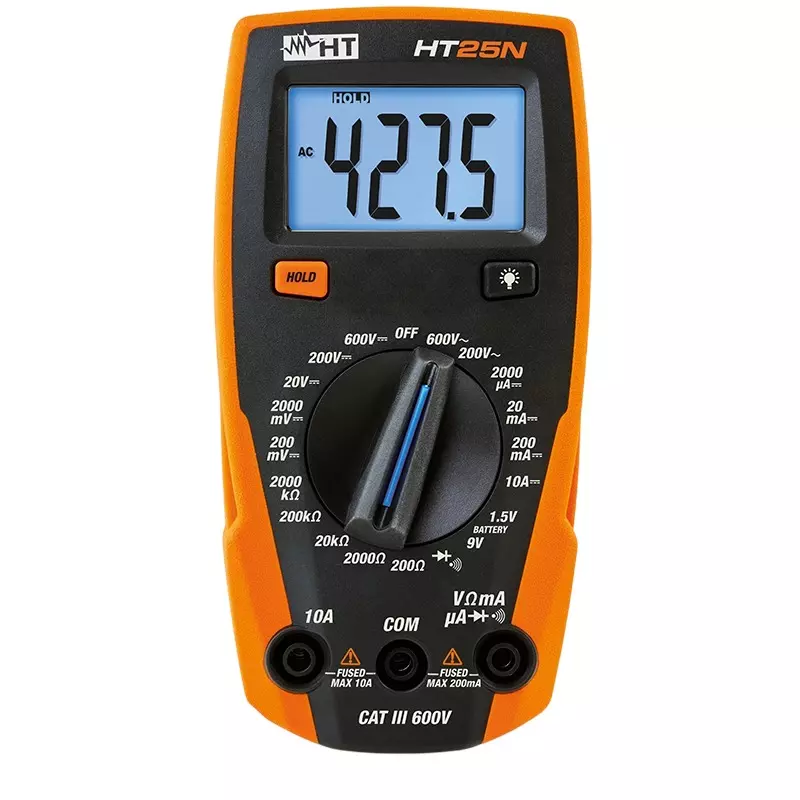

HT Instruments HT25N Digital Multimeter 200 Ω to 2000 KΩ Resistance Range

Description

The HT Instruments HT25N is a compact digital multimeter designed for basic electrical measurements in Category III 600V environments. Its simple operation and feature set make it suitable for a variety of users, including electricians, technicians, and DIY enthusiasts.

Key Features

• Measurement functions: The HT25N measures AC/DC voltage up to 600V and DC current up to 10A. It also includes complementary functions for resistance, continuity testing with a buzzer, and diode testing.
• Battery testing: A built-in feature allows for quick testing of 1.5V and 9V alkaline batteries.
• Safety features: The device has double insulation protection and is designed in compliance with the IEC/EN61010-1 standard for CAT III 600V installations.
• Display and interface: It is equipped with a large, backlit 3.5-digit LCD with a maximum reading of 2000 counts. The functions are selected via a rotary switch.
• Portability: With a weight of 255 grams (including the battery) and dimensions of 150 x 70 x 48 mm, it is a lightweight and portable tool.
• Data HOLD: This feature freezes the current reading on the display.
• Auto-off: An automatic power-off function helps to conserve battery life.
