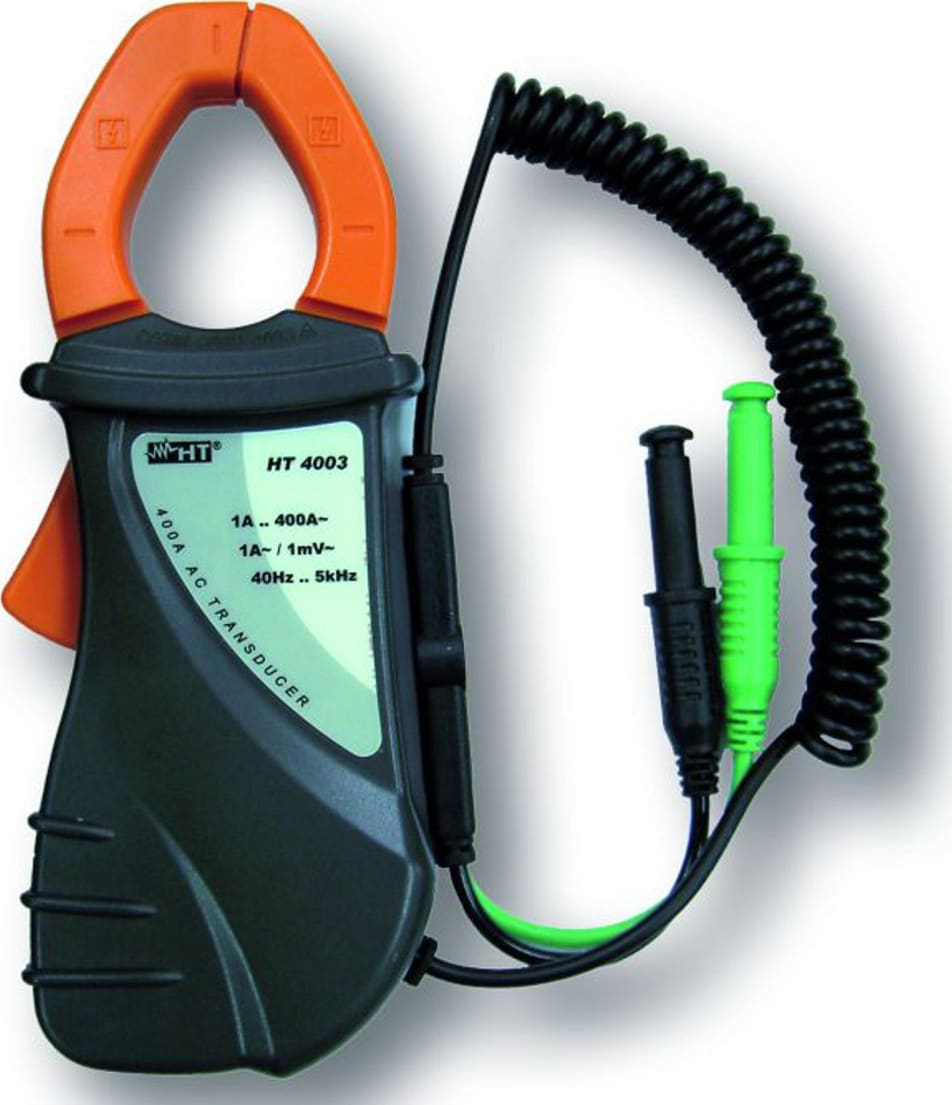

HT Instruments HT4003 AC Transducer Clamp Meter up to 400A

Description

The HT Instruments HT4003 is an AC transducer clamp meter designed for measuring AC currents up to 400A. It provides a voltage output signal that can be used with a variety of other instruments, such as multimeters, recorders, and data loggers.

Key Features

• Transducer clamp: The HT4003 functions as a transducer, which means it converts the measured current into a proportional voltage signal. This allows for a wider range of applications than a simple clamp meter.
• Output compatibility: The voltage output with banana connectors makes it compatible with any multimeter, data logger, or other device that can accept a voltage signal through standard banana jacks.
• Safety: With a CAT III 600V safety rating, the HT4003 is rated for use in most fixed installation environments, such as distribution panels, feeders, and short-circuit protection devices.
• Measurement range: 1A to 400A AC
• Output signal: 400mV AC
• Output ratio: 1A / 1mV
• Basic accuracy: ±1.5% of reading + 0.5A
• Safety rating: CAT III 600V, compliant with IEC/EN61010-1
• Maximum cable diameter: 30mm (1.18 inches)
• Output connector: 2 x 4mm safety banana leads
• Frequency range: 40Hz to 5kHz
• Working temperature: -10°C to +50°C
• Dimensions (L x W x H): 195mm x 64mm x 30mm
• Weight: 300g
