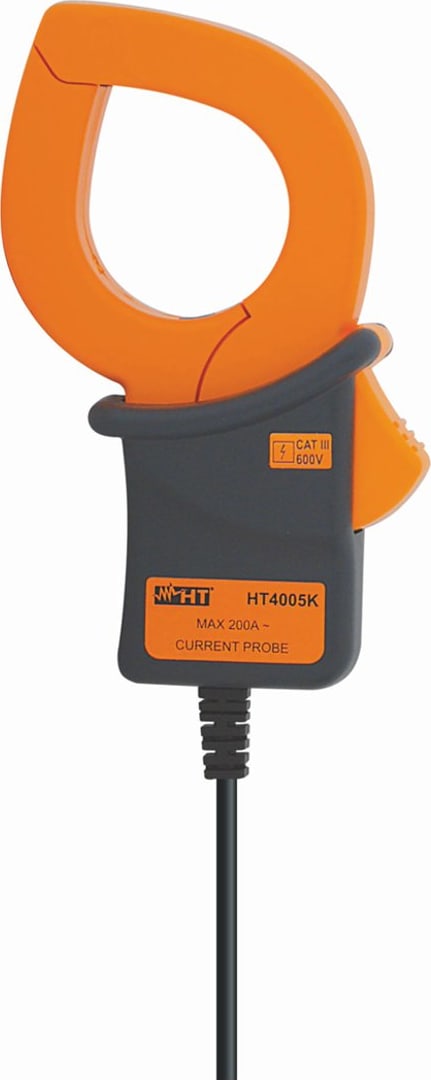

HT Instruments HT4005K AC Transducer Rigid Clamp Meter up to 200A
HT Instruments HT4005K AC Transducer Rigid Clamp Meter up to 200A
HT Instruments HT4005K AC Transducer Rigid Clamp Meter up to 200A
HT Instruments HT4005K AC Transducer Rigid Clamp Meter up to 200A

HT Instruments HT4005K AC Transducer Rigid Clamp Meter up to 200A

Brand
HT-INSTRUMENTS

Brand names and trademarks are the property of their respective owners and are used solely for product identification.

Available to Order

DescriptionThe HT Instruments HT4005K is a standard AC current clamp transducer used to measure AC currents up to 200A in electrical systems. It is not a standa
$415.74

🛡️ Buy with Confidence

  • Shipping: $30 flat rate across the USA
  • Processing: Fast 1–2 business days
  • Delivery: Typically 4–7 business days via UPS / FedEx / DHL
  • Warranty: 1-year manufacturer warranty (unless stated otherwise)
  • Returns: Hassle-free 30-day return policy
  • Secure Checkout: SSL encrypted & PCI compliant
Seller: NCIEM America – National Company of Industrial Equipment Marketing America LLC (USA)
Business Model: Independent reseller operating a zero-inventory procurement model
Shipping Scope: United States only, Policies apply to purchases made on nciem.us
Description

The HT Instruments HT4005K is a standard AC current clamp transducer used to measure AC currents up to 200A in electrical systems. It is not a standalone meter but an accessory that provides an AC voltage output, which can then be connected to a multimeter, data logger, or other suitable measuring instrument.

Key Features
  • Measurement range: 0.1A to 200A AC.
  • Maximum cable diameter: 40mm (approximately 1.6 inches), allowing it to clamp around larger conductors.
  • Accuracy: ±(0.5% rdg + 20mA) for a sinusoidal waveform at 45–65 Hz.
  • Output: 1V AC maximum output signal with an output ratio of 200A/1V.
  • Output connector: Hypertac connector.
  • Safety rating: CAT III 600V to ground, in compliance with standard IEC/EN61010-1.
  • Usage: It is designed for use with instruments such as network analyzers for photovoltaic systems, multimeters, or data loggers.
Download Data Sheet
