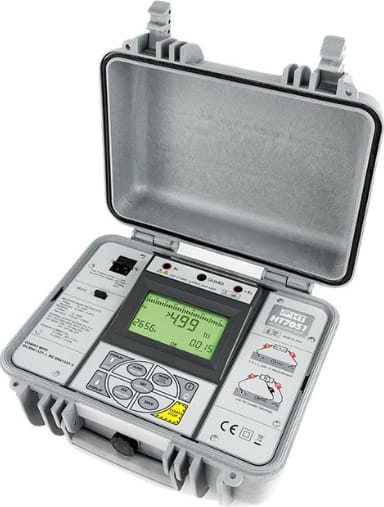

HT Instruments HT7051 Programmable digital 5kV insulation tester
HT Instruments HT7051 Programmable digital 5kV insulation tester
HT Instruments HT7051 Programmable digital 5kV insulation tester
HT Instruments HT7051 Programmable digital 5kV insulation tester

HT Instruments HT7051 Programmable digital 5kV insulation tester

Brand
HT-INSTRUMENTS

Brand names and trademarks are the property of their respective owners and are used solely for product identification.

Available to Order

DescriptionThe HT Instruments HT7051N is a programmable digital insulation tester, also known as a high-potential or "HiPot" tester. The "N" in the model name i
$3,835.00

🛡️ Buy with Confidence

  • Shipping: $30 flat rate across the USA
  • Processing: Fast 1–2 business days
  • Delivery: Typically 4–7 business days via UPS / FedEx / DHL
  • Warranty: 1-year manufacturer warranty (unless stated otherwise)
  • Returns: Hassle-free 30-day return policy
  • Secure Checkout: SSL encrypted & PCI compliant
Seller: NCIEM America – National Company of Industrial Equipment Marketing America LLC (USA)
Business Model: Independent reseller operating a zero-inventory procurement model
Shipping Scope: United States only, Policies apply to purchases made on nciem.us
Description

The HT Instruments HT7051N is a programmable digital insulation tester, also known as a high-potential or "HiPot" tester. The "N" in the model name indicates it is a "new" unit, specifying its condition. Designed for industrial environments, it can perform professional insulation resistance measurements up to 5kV DC.

Key Features
  • Insulation resistance measurement: Measures resistance up to 10 TΩ (teraohms).
  • Multiple test modes: Includes FIX (pre-set voltages), ADJUST (programmable voltage), and RAMP (stepped voltage over time) modes for various testing requirements.
  • Diagnostic tests: Measures Polarization Index (PI) and Dielectric Absorption Ratio (DAR) to assess insulation quality over time.
  • Voltage measurement: Can also measure AC/DC True-RMS (TRMS) voltage up to 600V.
  • Internal memory: Can save up to 700 test results.
  • PC connectivity: Features an RS-232 interface and includes TopView PC software for data transfer and analysis.
  • Portable and durable: Comes in a rugged, hard-carrying case with a protective enclosure rated for IP53 (when closed).
  • Rechargeable battery: Powered by a NiMH rechargeable battery with an integrated charger.
Download Data Sheet
