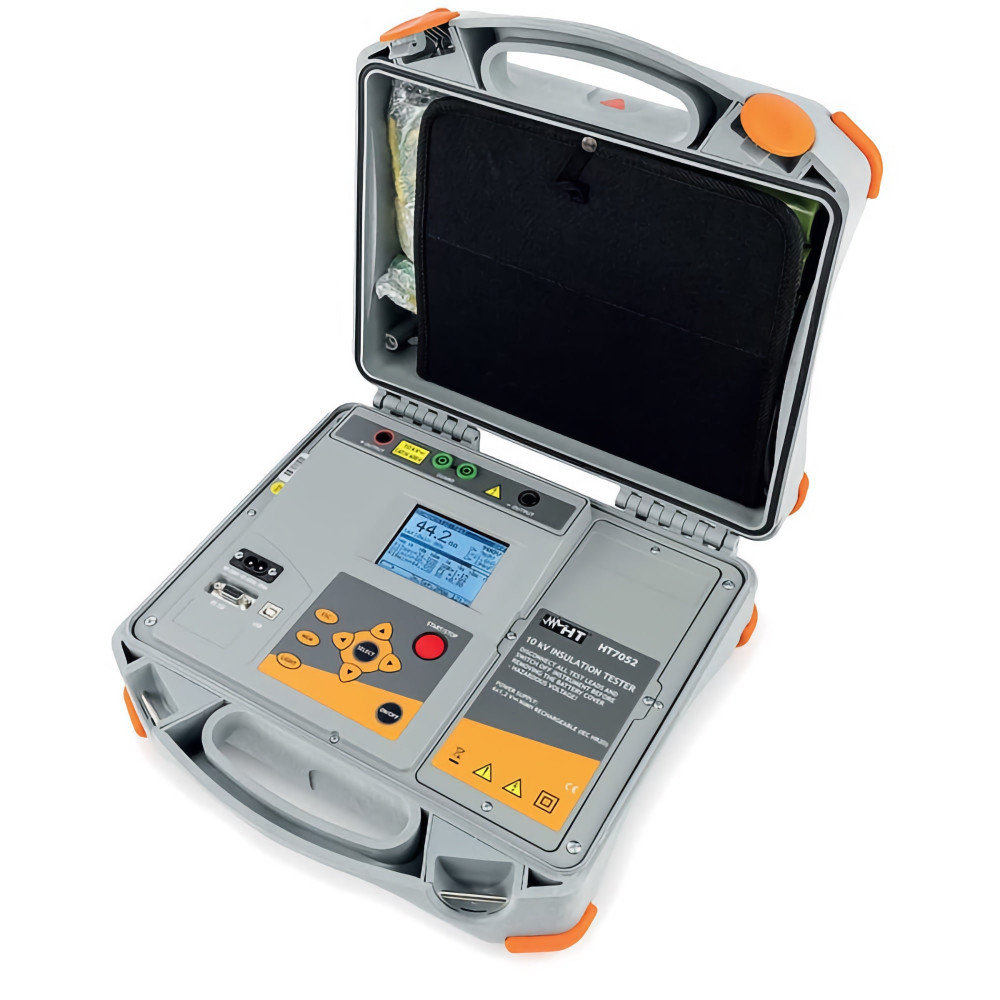

HT Instruments HT7052 Professional 10kV Insulation Tester

Description

The HT Instruments HT7052 HiPot is a professional, portable, programmable digital insulation tester that uses high test voltages up to 10 kVDC. It is designed for industrial applications to measure the insulation resistance of equipment like power transformers, electrical machines, cables, and switchboards.

Key Features

• Insulation resistance (IR) measurement: Features a programmable test voltage from 500 V to 10 kVDC, with a maximum measurement range of 10 TΩ.
• Multiple test modes: Offers FIX mode for fixed test voltages, ADJUST mode for programmable test voltages, and RAMP mode with selectable voltage and time duration.
• Diagnostic testing: Can perform Polarization Index (P.I.), Dielectric Absorption Ratio (D.A.R.), and Dielectric Discharge (D.D.) tests to assess the quality of insulating material.
• Data storage: Includes an internal memory capable of saving up to 1,000 test results.
• PC connectivity: Equipped with RS-232 and USB interfaces for downloading and analyzing saved measurements on a PC.
• Built for industrial use: Housed in a durable, hard carrying case for field use and features a CAT IV 600V safety rating.
• Rechargeable battery: Powered by NiMH rechargeable batteries with an integrated charger for extended use.
• Additional measurements: Can also perform DC/AC voltage up to 600 V and capacitance measurements.
