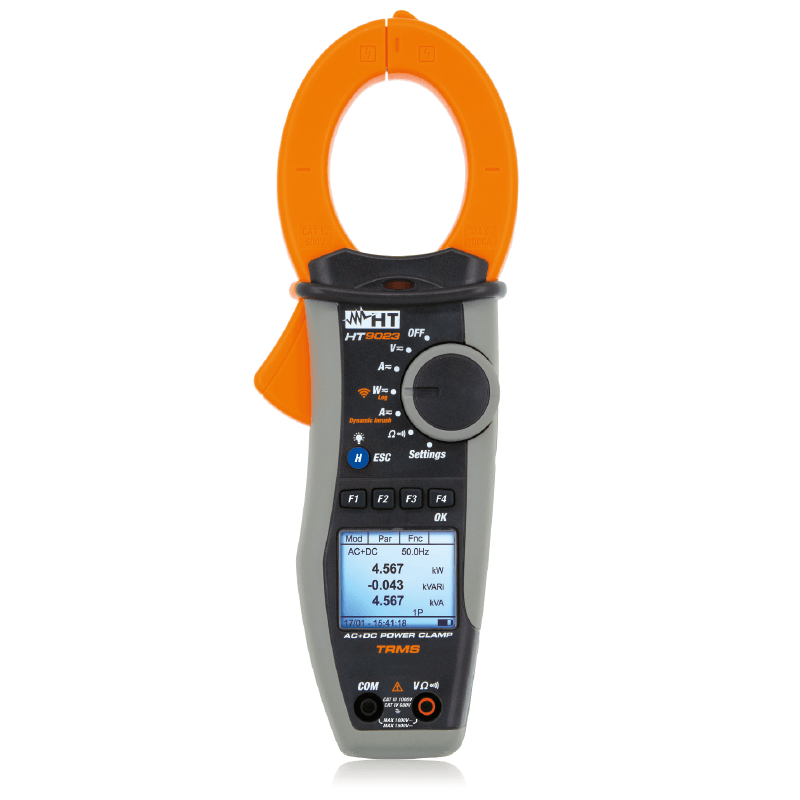

HT Instruments HT9023 TRMS AC/DC Clamp-on Power Quality Analyzer with Wi-Fi Connection

Description

The HT Instruments HT9023 is a professional-grade TRMS AC/DC clamp meter designed for power quality analysis in industrial and commercial electrical systems. Key features include high voltage and current measurement capabilities, Wi-Fi connectivity for data transfer, and harmonic analysis.

Key Features

• Functions: Measures AC, DC, and AC+DC currents up to 1000A in True RMS (TRMS).
• Voltage Measurement: Supports DC voltage measurements up to 1500V and AC/AC+DC voltage up to 1000V.
• Safety Rating: Complies with CAT IV 600V and CAT III 1000V standards.
• Display: Features a large, graphic dot-matrix screen (128x128 pixels) with backlight for clear visibility.
• Power Quality Analysis: Performs harmonic analysis up to the 25th order with THD% calculation for single-phase and balanced three-phase systems.
• Dynamic INRUSH: Detects and records events related to motor starting currents.
• Data Logging: Records electrical parameters over time with an internal memory of 2Mbytes.
• Connectivity: Equipped with Wi-Fi for transferring data to Android/iOS devices via the HTAnalysis app or to a PC using TOPVIEW software.
• Maximum Conductor Size: The clamp jaw can accommodate conductors up to 45mm in diameter.
• Power Source: Operates on two AAA 1.5V batteries.
