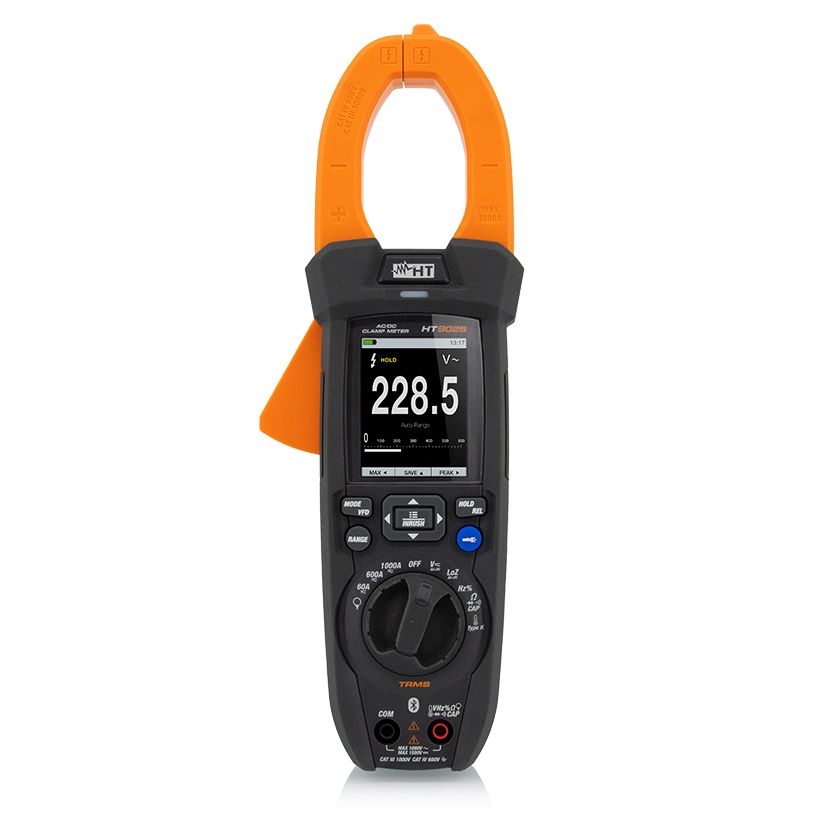

HT Instruments HT9025 1000VAC/1500VDC Current Clamp with DATA LOGGER Function

Description

The HT Instruments HT9025 is a new, professional TRMS (True Root Mean Square) clamp meter designed for industrial and photovoltaic (solar) applications. It is feature-packed and includes a data logger function, allowing users to record and store measurement data over time for later analysis. The meter is known for its high level of precision and durability.

Key Features

• Measurement capabilities: The HT9025 can measure AC/DC current up to 1000A, DC voltage up to 1500V, and AC voltage up to 1000V. It also measures resistance, frequency, capacitance, and temperature with an included K-type probe.
• Safety standards: The device is compliant with safety standards IEC/EN61010-1 and rated for CAT IV 600V and CAT III 1000V.
• Display: It features a 6000-count, backlit, color TFT display with a bargraph for clear reading, even in poorly lit areas.
• Data logging: The clamp meter has a data logger function that can record up to 10 hours of trending data.
• Bluetooth connectivity: A Bluetooth connection is included for linking to mobile devices via the HTMercury app.
• Robust design: The device is well-rubberized and feels sturdy.
• Auto power-off: A function to automatically turn off the device after a period of inactivity helps save battery life.
• Included accessories: The HT9025 comes with test leads, an adapter and K-type probe, a Li-ION rechargeable battery, a charging base, and a carrying bag.
