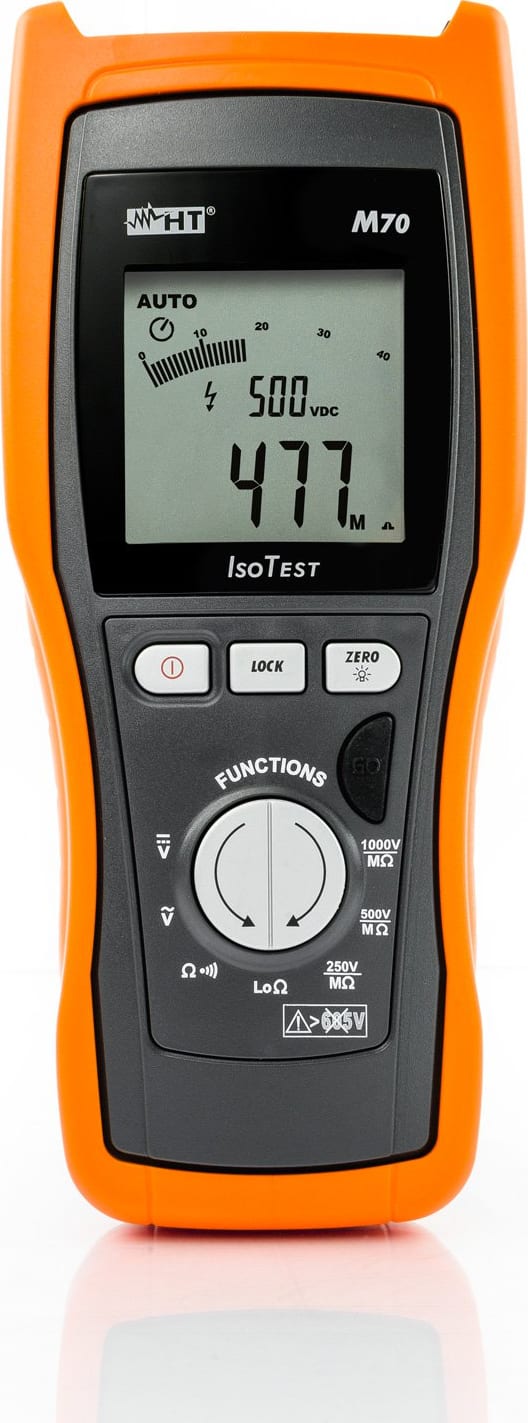

HT Instruments ISOTEST M70 1000V Insulation Meter, 200mA Continuity Meter and RMS DMM

Description

The HT Instruments ISOTEST M70 is a professional-grade, handheld multifunction tester for electricians, combining a 1000V insulation meter, a 200mA continuity meter, and a True RMS digital multimeter (DMM). It is designed for use on residential and industrial electrical installations in compliance with IEC/EN61557 requirements.

Key Features

• Insulation test voltages: 250V, 500V, and 1000V DC.
• Maximum insulation resistance: 4 GΩ (4000 MΩ).
• Continuity test: Measures protective and equipotential conductors with a 200mA test current.
• DMM capabilities: Measures AC and DC voltage up to 600V with True RMS technology.
• Timer function: Program insulation tests for a duration of 2 to 60 seconds.
• LOCK function: Allows for continuous, hands-free insulation measurements.
• Safety features: Includes automatic discharge of the device under test.
• Display: Large, backlit display with a bargraph.
• Ergonomics: Compact, lightweight (450g) design with a protective rubber holster.
