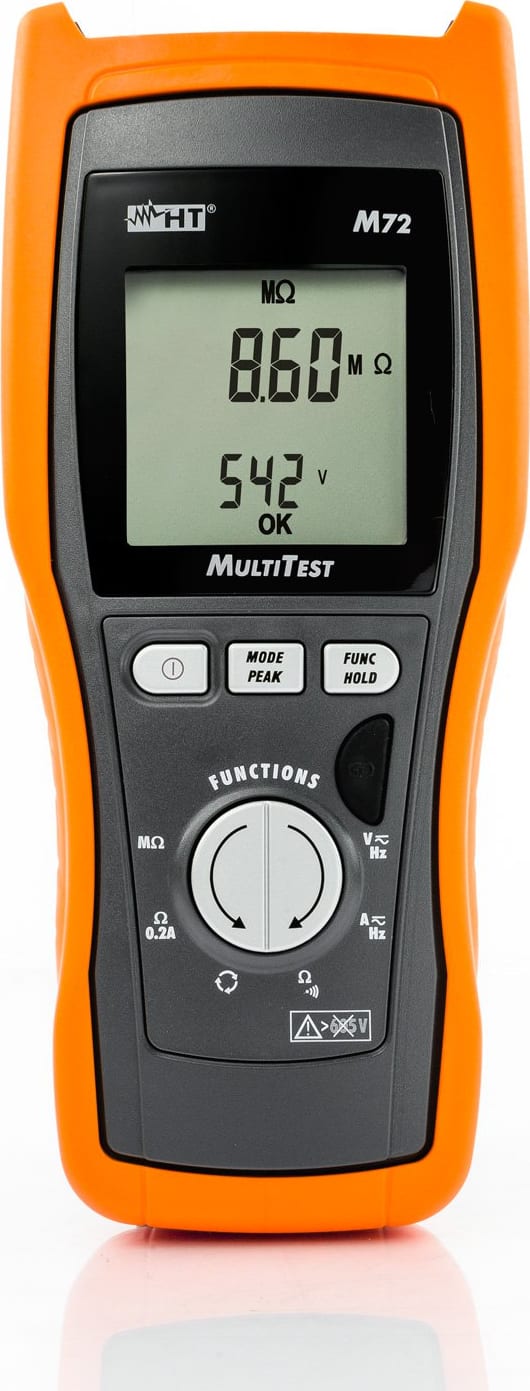

HT Instruments M72 500V Insulation Meter, Continuity Meter & TRMS DMM

910Description

The HT Instruments M72 is a portable, multifunction tester used for measuring insulation resistance, continuity, and performing multimeter functions in residential and industrial electrical installations. It is important to note that despite the user query including "HiPot," the M72 is primarily an insulation and continuity tester and not a dedicated high-voltage AC hipot tester, which tests dielectric strength at extremely high voltages.

Key Features

• Insulation resistance testing: Measures insulation with test voltages of 250 and 500 V DC, with a range up to 1 GΩ.
• Continuity testing: Performs a continuity test of protective and equipotential conductors with a test current of 200 mA.
• Multimeter functions: Serves as a TRMS (True Root Mean Square) multimeter for measuring AC/DC voltage up to 600V and current (with an optional external clamp).
• Phase sequence: Can determine the phase sequence using a single terminal, which is useful for verifying three-phase systems.
• Leakage current: Measures leakage currents with an optional clamp transducer.
• Peak measurement: Features a 1ms PEAK function for measuring peak voltage and current.
• User-friendly design: Equipped with a large LCD display, ergonomic casing, and a protective rubber holder.
