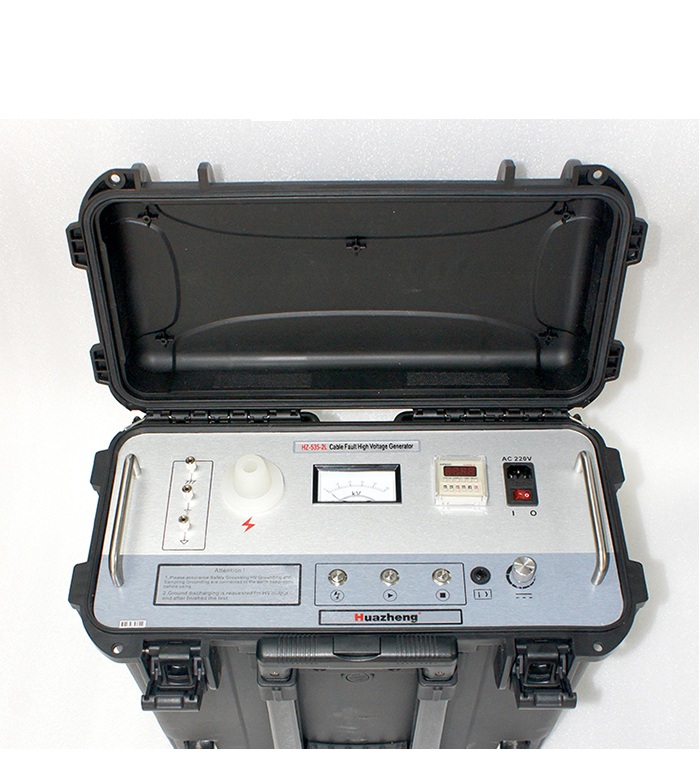

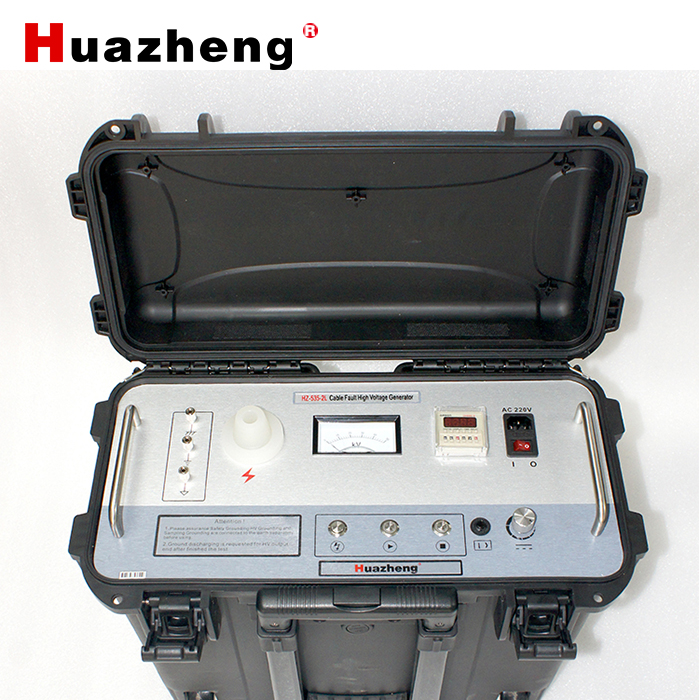

| Description: Detect main insulaƟon faults of power cables of voltage class 35kV and below; calibrate cable length; accurately detect cable burial direcƟon and depth. |
| Characteristics:
★With over-current, over-voltage, over-heat automatic protection function; ★ Uniform and controllable high-voltage pulse output; ★ Super short-circuit protection function, which can make the high-voltage output directly short-circuit to the ground; ★ It has dual 1.5-level pointer meter display for current and voltage, which is intuitive and clear, and the impact discharge process is clear at a glance; ★ High-voltage side voltage measurement, real-time and accurate; ★ With zero start protection, and potentiometer zero output function, safe and reliable; ★ Unique high-voltage measurement design, in the stopped state, the voltmeter can indicate the capacitor voltage in real time; ★ It has an emergency stop function, which can cut off the high voltage output in an emergency; the main technical indicators: Impact high voltage: 0~35kV optional High voltage divider: voltage accuracy level 1.5 Built-in capacitance: 2μF Discharge power: 0-1225J Charge current: 100mA Output voltage polarity: negative polarity Impact power: 400W Overcurrent protection: 10A (more than 3 seconds) Over temperature protection: 85℃ Volume: 540L×300W×450H Weight: no more than 25kg Working power supply: AC 220V±10%/50Hz±2Hz Ambient temperature: -20～+60℃ |
