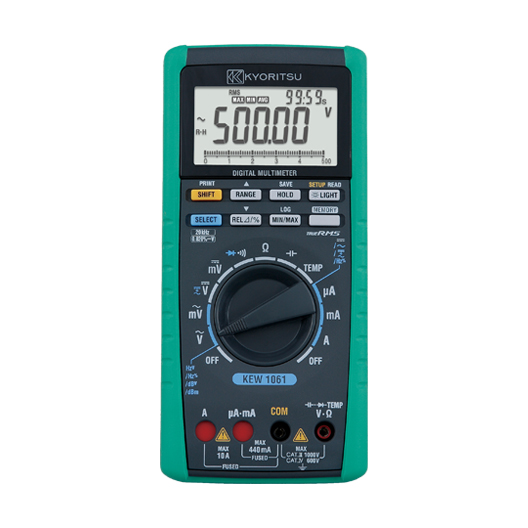

Kyoritsu 1061 True RMS Multimeter, 1000V

Description

The Kyoritsu 1061 is a high-accuracy, high-performance digital multimeter designed for professional use in industrial and laboratory settings. It offers reliable measurements and a range of features for advanced troubleshooting and data management.

Key Features

• High accuracy: The device features a basic DC accuracy of 0.02%, ensuring precise measurements.
• High resolution display: It has a large, 50,000-count dual display that can show two indications simultaneously (e.g., AC and DC, or voltage and frequency).
• True RMS measurement: The meter can perform True-RMS measurements for both AC and AC+DC signals, ensuring accurate readings even with non-sinusoidal waveforms.
• Safety features: The 1061 is built for industrial safety and complies with IEC 61010-1 CAT IV 600V and CAT III 1000V standards. It also features a terminal shutter that prevents test leads from being inserted into the wrong current terminals.
• Data management: The multimeter has a large internal memory capable of logging up to 1,000 data points and manually storing 100 data points. Users can also connect to a PC via an optional USB interface for live monitoring and downloading data.
• Wide operating range: The device can be used in a wide temperature range, from -20°C to 55°C.
• Advanced functions: Additional features include duty cycle ratio measurement, decibel calculation (dBV, dBm), and a fast Peak Hold function with a response time of 250µs.
