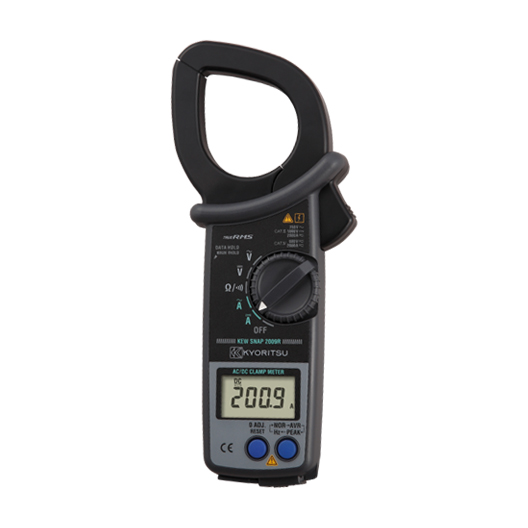

Kyoritsu 2009R True RMS AC/DC Digital Clamp Meter, 2000A/1000V

Description

The Kyoritsu KEW 2009R is a digital clamp meter that provides True RMS measurements for both AC and DC current and voltage up to 2000A and 1000V, respectively. Its True RMS capability makes it ideal for accurately measuring distorted or non-sinusoidal waveforms found in modern electronic systems, such as those with variable speed drives and computers.

Key Features

• True RMS measurement: Provides accurate readings for AC current and voltage, even with distorted or non-sinusoidal waveforms.
• Broad measurement capabilities: Measures AC and DC current up to 2000A and voltage up to 1000V DC and 750V AC. It also includes functions for resistance, frequency, and continuity.
• Safety features: Designed to meet international safety standards, including IEC 61010-1 CAT IV 600V and CAT III 1000V.
• User-friendly design: Features teardrop-shaped jaws for easy access to cables in crowded spaces. The instrument includes a data hold function for convenient readings in dimly lit or hard-to-reach areas.
• Advanced functions: Includes a peak function to measure the peak of an input signal, an average function for fluctuating inputs, and an auto-null function for simple zero adjustments.
• Recorder output: An output terminal allows the meter to be connected to a recorder for monitoring current variations over time.
• Energy-saving features: An auto-power-off function extends battery life.
