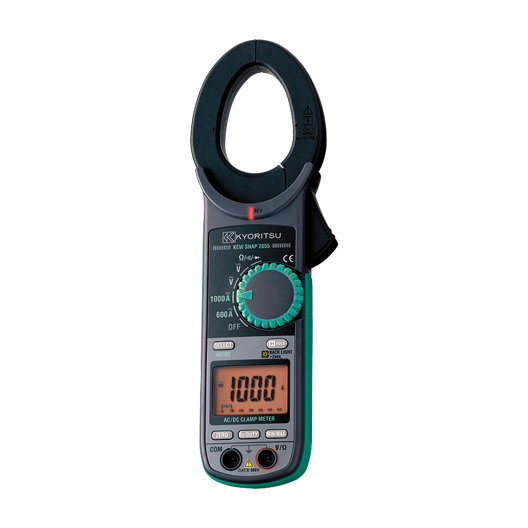

Kyoritsu 2055 AC/DC Digital Clamp Meter, 1000A/600V

Description

The Kyoritsu KEW 2055 is a versatile True RMS digital clamp meter capable of measuring both AC and DC current up to 1000A. Its sturdy, double-molded construction offers a comfortable and secure grip. It is designed for use by professionals in power distribution, utilities, and general maintenance.

Key Features

• Measurements: Measures AC/DC current up to 1000A and AC/DC voltage up to 600V. It also measures resistance (up to 60MΩ), continuity, and frequency.
• Display: A large 6039-count backlit LCD with a bar graph display for improved visibility in various lighting conditions.
• True RMS: Provides accurate readings for distorted or non-sinusoidal waveforms.
• Non-Contact Voltage (NCV): A red LED provides a warning of AC voltage presence without direct contact.
• Jaw Size: Accommodates conductors up to Ø40mm.
• Hold Functions: Includes Data Hold to freeze readings on the display, and Min/Max Hold to record minimum and maximum values during a measurement session.
• Relative (REL) Function: Allows for measurement variation against a stored reference value.
• Safety Rating: Designed to meet international safety standard IEC 61010-1 CAT IV 600V, making it suitable for both low and high-power circuits.
• Power Source: Operates on two AAA (R03) batteries.
• Dimensions and Weight: Approximately 254(L) x 82(W) x 36(D)mm and weighs around 310g.
