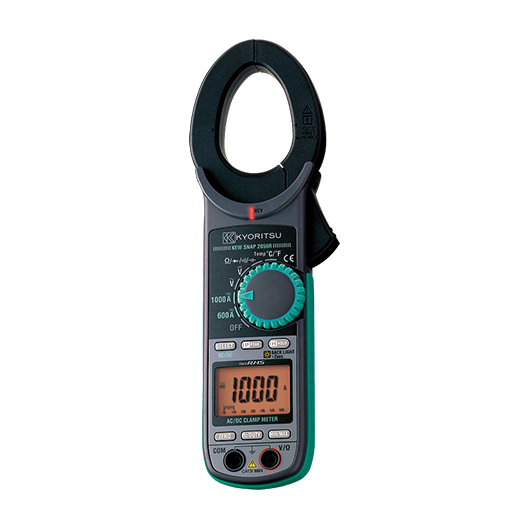

Kyoritsu 2056R True RMS AC/DC Digital Clamp Meter, 1000A/600V

Description

The Kyoritsu KEW 2056R is a rugged, True RMS digital clamp meter capable of measuring high AC and DC currents up to 1000A. With a CAT IV 600V safety rating, it is designed for professional use in demanding environments like power distribution and utilities. The meter features a durable, double-molded body for a comfortable and secure grip.

Key Features

• True RMS: Accurately measures distorted and non-sinusoidal waveforms in AC/DC current and voltage measurements.
• Non-Contact Voltage (NCV): A warning LED on the jaw provides a non-contact indication of AC voltage presence, improving safety.
• Safety Rating: Meets IEC 61010-1 CAT IV 600V standards, ensuring safe use in both low and high-power circuits.
• Backlit Display: A 6039-count LCD with a bar graph and backlight is included for high-visibility readings in various lighting conditions.
• Peak Hold: Captures and displays the highest value of inrush currents, such as when starting a motor.
• Min/Max Hold: Records the minimum and maximum values detected during a measurement session.
• Additional Functions: Includes data hold, relative (REL) function, auto power off, and can perform tests for resistance, capacitance, frequency, and continuity.
• Temperature Measurement: An optional temperature probe (model 8216) can be used to measure temperatures from -50 to +300ºC.
