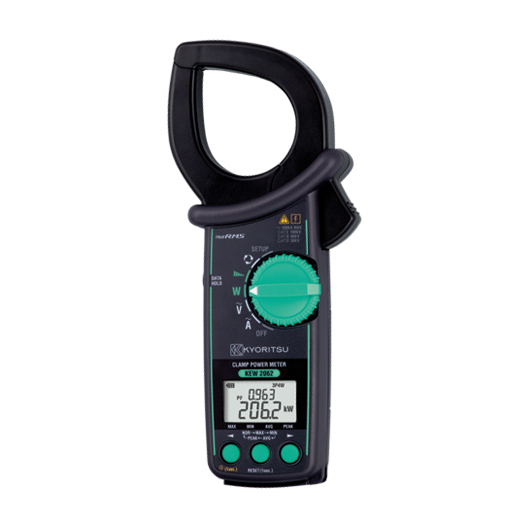

Kyoritsu 2062 Clamp Power Meter

Description

The Kyoritsu KEW 2062 is a compact clamp power meter that provides True RMS measurements for AC current and voltage, along with capabilities for measuring power, harmonics, and phase detection. It features a large tear-drop-shaped jaw designed for easy use in confined spaces, such as inside electrical panels or factories.

Key Features

• Measurements: Current (up to 1000A rms), voltage (up to 1000V rms), active/reactive/apparent power, power factor, phase detection, and harmonics (up to 30th).
• True RMS: Accurately indicates values even with distorted waveforms.
• Conductor Size: Up to 55mm via the tear-drop-shaped jaw.
• Power measurement: Can perform power measurements on single-phase 2-wire, single-phase 3-wire, three-phase 3-wire, and three-phase 4-wire systems.
• Display: A backlit LCD that can simultaneously show different measurement values, such as voltage and frequency, or power and power factor.
• Hold functions: Includes PEAK, MAX, MIN, and AVG functions to capture specific measurement events.
• Continuous measuring time: Approximately 58 hours on a single set of batteries.
• Safety Rating: CAT IV 300V / CAT III 600V / CAT II 1000V.
• Power Source: 2x AA (LR6) batteries.
• Dimensions and Weight: 247(L) x 105(W) x 49(D)mm, approx. 490g.
