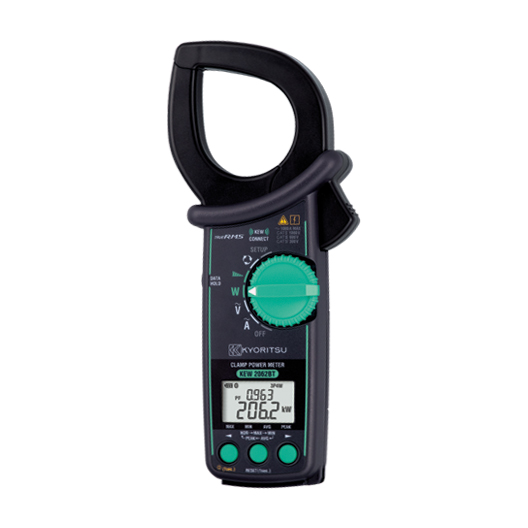

Kyoritsu 2062BT Clamp Power Meter, Bluetooth

Description

The Kyoritsu KEW 2062BT is a True RMS clamp power meter equipped with Bluetooth connectivity. This feature allows for the wireless transfer of measurement data to smart devices running a dedicated app, enhancing data logging, analysis, and reporting capabilities.

Key Features

• Bluetooth Connectivity: Enables wireless data transfer to a smartphone or tablet, where the dedicated app KEW Power can be used to view real-time data, display waveforms, and generate reports.
• True RMS Measurement: Provides accurate readings for both sinusoidal and distorted waveforms for AC voltage and current.
• Versatile Power Analysis: The meter can perform power measurements on single-phase 2-wire, single-phase 3-wire, three-phase 3-wire (balanced and unbalanced), and three-phase 4-wire systems.
• Harmonics Measurement: Measures and displays harmonics for voltage and current up to the 30th order, including Total Harmonic Distortion (THD-R and THD-F).
• Phase Detection: A built-in function allows for quick detection of the correct phase sequence.
• Multiple Measurement Functions: Can measure a wide range of electrical parameters, including AC current (up to 1000A), AC voltage (up to 1000V), active/reactive/apparent power, power factor, and frequency.
• Intuitive Display: A backlit LCD can simultaneously show multiple values, such as voltage and frequency or power and power factor.
• Hold Functions: Includes Peak, Max, Min, and Avg functions to capture specific measurement events over time.
• Ergonomic Design: Features a tear-drop-shaped jaw with a 55mm conductor size, making it convenient to use in tight spaces within electrical panels.
• Safety Rating: Rated CAT IV 300V / CAT III 600V / CAT II 1000V.
