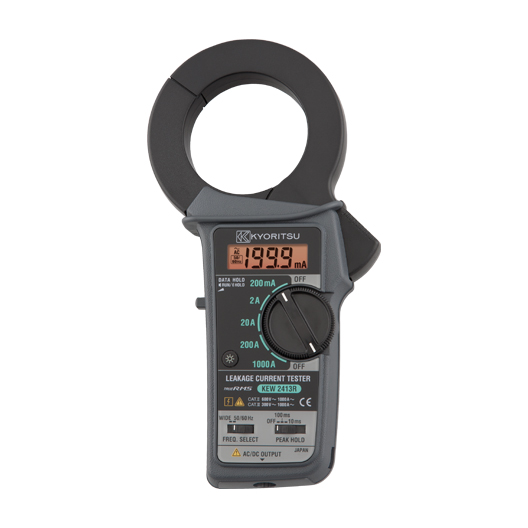

Kyoritsu 2413R True RMS Leakage Clamp Meter, 1000A/0.1mA

Description

The Kyoritsu 2413R is a True RMS digital clamp meter for measuring both high AC load current and very low AC leakage current. Its specialized, shielded jaws allow for accurate leakage current measurements by minimizing the effect of external magnetic fields.

Key Features

• Dual measurement capability: The device can measure AC current from as low as 0.1 mA up to 1000 A.
• True RMS: The True RMS (Root Mean Square) technology ensures accurate measurements, even for distorted or non-sinusoidal AC waveforms.
• Large jaw size: The 68mm jaw diameter can clamp around multiple conductors at once (three or four wires for 3-phase systems), making it ideal for measuring total leakage current.
• Frequency filter: A built-in frequency selector switch can be used to filter out harmonics and allow for more accurate readings of the fundamental mains frequency.
• Peak hold: This function captures the maximum current value during a user-selectable response time (10ms or 100ms), which is useful for measuring inrush current.
• Analog output: The meter has an analog output terminal that can be connected to an oscilloscope for waveform analysis or a recorder for data logging.
• Data hold: Allows the user to freeze the displayed measurement for easier reading in hard-to-reach locations.
• LCD backlight: Improves display visibility in dimly lit areas.
• Safety rating: Rated to IEC 61010-1 CAT III 300V for safe professional use.
