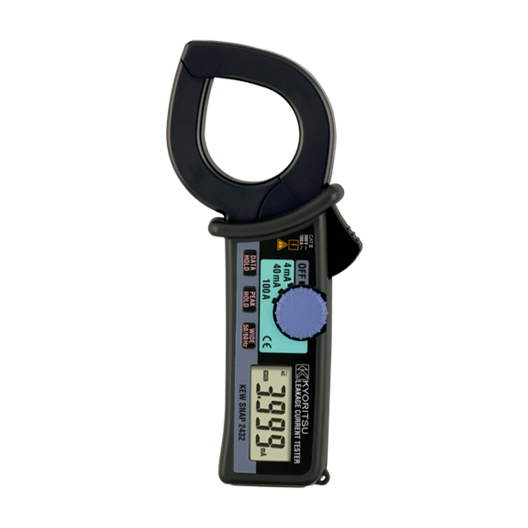

Kyoritsu 2432 Leakage Clamp Meter

Description

The Kyoritsu 2432 is a high-sensitivity digital AC leakage clamp meter used for measuring small leakage currents and general AC currents up to 100A. It is a specialized instrument for electrical safety audits, troubleshooting, and compliance testing.

Key Features

• High sensitivity: The meter can measure leakage current with a resolution as fine as 0.001mA (1µA), allowing for the detection of very small leakages.
• Measurement ranges: It offers three distinct AC current ranges for flexibility: 4mA, 40mA, and 100A.
• Harmonic filtering: A frequency selector switch helps to eliminate the effect of harmonics, which ensures more accurate measurements, especially when dealing with low currents.
• Peak hold and data hold: The meter includes functions to hold the maximum measured peak value and to freeze the current measurement on the display for easier reading.
• Large jaw size: The clamp has a 40mm diameter jaw, suitable for clamping around a wide range of cables.
• Magnetic field resistance: The instrument is designed to be minimally affected by external magnetic fields, ensuring measurement accuracy in various environments.
• Auto power-off: To conserve battery life, the meter automatically turns off after about 10 minutes of inactivity.
