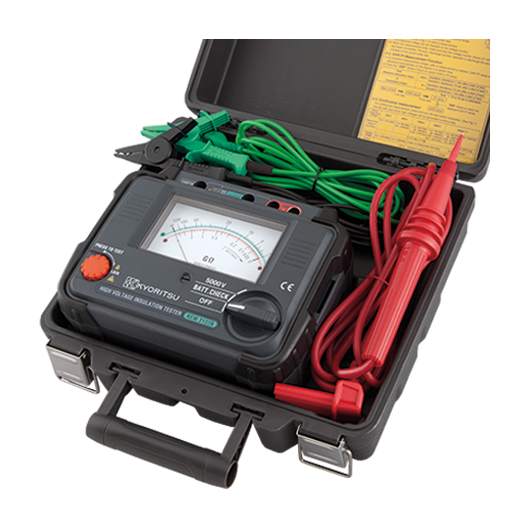

Kyoritsu 3122B High Voltage Insulation Testers, 5000V

Descriptions

The Kyoritsu 3122B is an analog high-voltage insulation tester capable of applying a DC test voltage of 5000V. It is a heavy-duty instrument designed for measuring the insulation resistance of high-voltage electrical equipment in industrial settings.

Key Features

• Test voltage: 5000V DC.Measuring ranges: 5 GΩ and 200 GΩ (auto-ranging).Accuracy:\(\pm 5\%\) of reading in the range of 0.2–100 GΩ.\(\pm 10\%\) of reading or 0.5% of scale length in other ranges.
• Scale: Analog display with dual, color-coded scales for easy reading.
• Safety features:Audible high-voltage warning during insulation resistance tests.Built to meet safety standards: IEC 61010-1 CAT IV 300V / CAT III 600V. Extremely easy and simple operation.
• Automatic range selection, indicated by LEDs.Rated output voltage is maintained down to 0.2 GΩ, which allows for accurate measurements of low insulation resistance.
• Power source: 8 x LR14/R14 (C size) alkaline batteries.Weight: Approximately 1.7 kg, including batteries.
• Included accessories: The tester comes with a hard carrying case, test leads, a line probe, earth cord, guard cord, and batteries.
