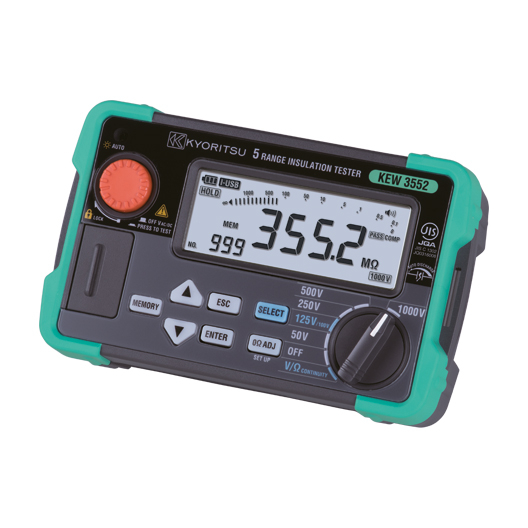

Kyoritsu 3552 Digital Insulation Resistance Tester with memory function, 6 ranges

Description

The Kyoritsu 3552 is a digital insulation and continuity tester designed for electrical professionals who require fast and reliable measurements with data storage capability. With its key distinction being the inclusion of an internal memory function.

Key Features

• Fast measurement speed: The tester can measure insulation resistance in as little as 0.5 seconds.
• Multiple test voltages: Offers six selectable test voltages: 50V, 100V, 125V, 250V, 500V, and 1000V, making it a versatile tool for different applications.
• Data memory function: Equipped with internal memory to save, recall, and delete up to 1,000 sets of measurement data.
• USB interface: Measured data can be transferred to a PC via an optional USB adapter for further analysis and report generation.
• Backlit display: An illuminated LCD with an auto-sensing backlight facilitates working in dimly lit areas.
• Diagnostic testing: Supports Polarization Index (PI) and Dielectric Absorption Ratio (DAR) diagnostic insulation tests.
• Continuity testing: Features a continuity test function with a "Zero \(\Omega \) adjustment" to compensate for test lead resistance, ensuring accurate low-resistance measurements.
• Compact and durable design: Built to be portable and robust for use in the field.
• Auto AC/DC voltage detection: For voltages above 30V, the device automatically detects if the input is AC or DC.
