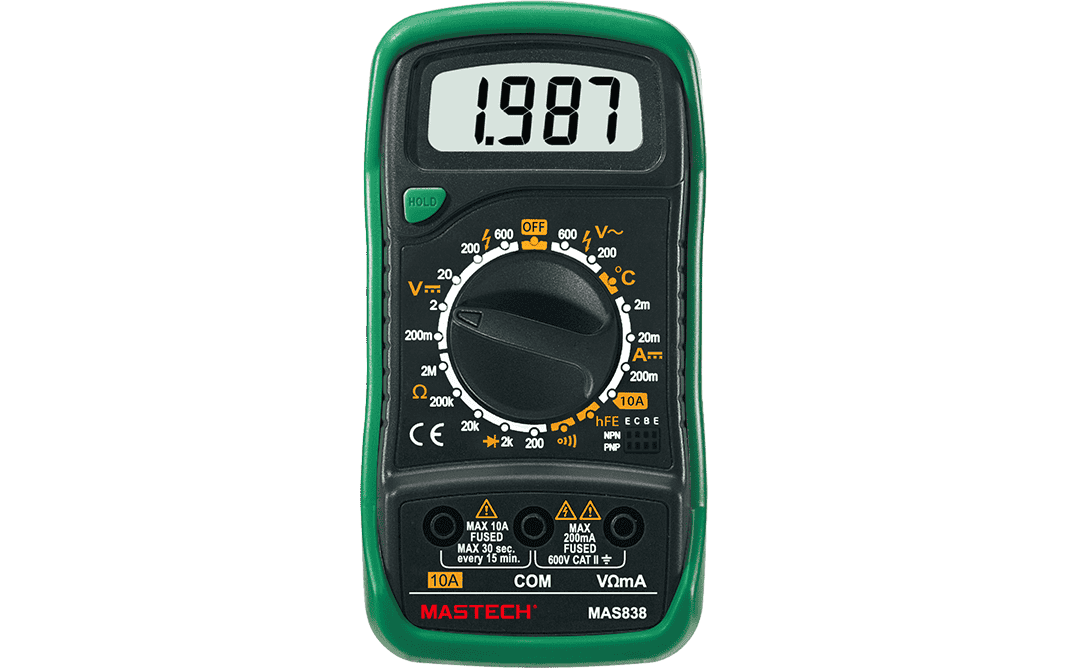

Mastech MAS838 Manual Ranging Digital Multimeter
Mastech MAS838 Manual Ranging Digital Multimeter
Mastech MAS838 Manual Ranging Digital Multimeter
Mastech MAS838 Manual Ranging Digital Multimeter

Mastech MAS838 Manual Ranging Digital Multimeter

Brand
Mastech

Brand names and trademarks are the property of their respective owners and are used solely for product identification.

Available to Order

DescriptionThe Mastech MAS838 is a manual ranging digital multimeter, requiring the user to manually select the correct measurement range with a rotary switch.
$24.00

🛡️ Buy with Confidence

  • Shipping: $30 flat rate across the USA
  • Processing: Fast 1–2 business days
  • Delivery: Typically 4–7 business days via UPS / FedEx / DHL
  • Warranty: 1-year manufacturer warranty (unless stated otherwise)
  • Returns: Hassle-free 30-day return policy
  • Secure Checkout: SSL encrypted & PCI compliant
Seller: NCIEM America – National Company of Industrial Equipment Marketing America LLC (USA)
Business Model: Independent reseller operating a zero-inventory procurement model
Shipping Scope: United States only, Policies apply to purchases made on nciem.us
Description

The Mastech MAS838 is a manual ranging digital multimeter, requiring the user to manually select the correct measurement range with a rotary switch. This differs from an auto-ranging meter, which automatically selects the appropriate range.

Key Features
  • DC Voltage: Measures voltage up to 600V with ranges including 200mV, 2V, 20V, and 200V.
  • AC Voltage: Measures AC voltage on 200V and 600V ranges, calibrated for sine waves between 40Hz and 400Hz.
  • DC Current: Can measure DC current up to 10A.
  • Resistance: Measures resistance up to 2MΩ with several ranges.
  • Continuity: Tests for a continuous electrical path. A built-in buzzer sounds if the resistance is low.
  • Diode Test: Checks the functionality of diodes.
  • Transistor Test (hFE): Includes a socket for testing the gain of NPN and PNP transistors.
  • Temperature: Measures temperature using a K-type thermocouple, with a range of -20°C to 1000°C.
  • Data Hold: A button to freeze the current measurement on the display for easy reading.
  • Display: A 3½-digit LCD with a maximum count of 1999.
Download Data Sheet
