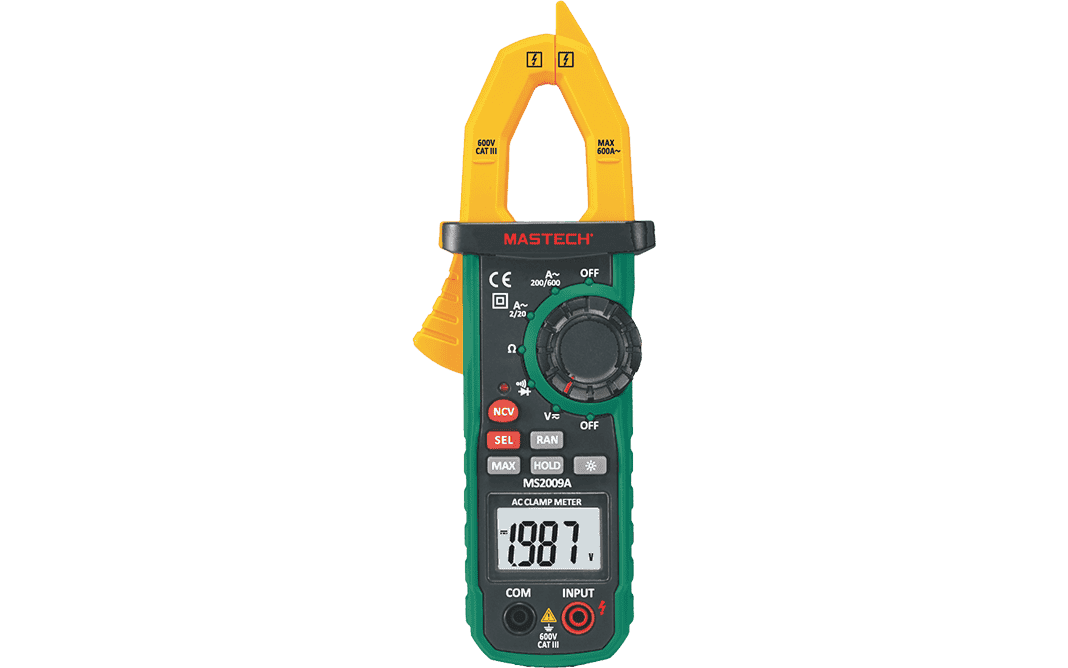

Mastech MS2009A Digital Clamp Meter

Description

The Mastech MS2009A is a digital clamp meter that measures AC current up to 600A and also functions as a basic multimeter. Unlike the more advanced MS2009C, it does not measure capacitance, frequency, duty cycle, or temperature, and it does not have a high-resolution display. However, it does feature the ability to measure DC current up to 600A.

Key Features

• AC/DC Current Measurement: The MS2009A can measure both AC and DC current up to 600A.
• Multifunctional Measurement: In addition to current, it measures AC/DC voltage (up to 600V) and resistance (up to 20MΩ).
• Auto Ranging: The meter automatically selects the correct measurement range, simplifying operation.
• Display: It features a 2000-count digital display with a backlight for clear readings in low-light conditions.
• Non-Contact Voltage (NCV) Detection: This safety feature allows the user to detect the presence of live AC voltage without physical contact.
• MAX Value Hold: This function captures and holds the maximum reading during a measurement session.
• Data Hold: Freezes the current reading on the display for easy recording.
• Convenience Features: Includes a built-in work light, auto power-off, and a low-battery indicator.
• Portability: The clamp has a Φ26mm (1.0") jaw opening, and the meter is compact and lightweight.
• Safety Certification: It is certified with a CAT III 600V safety rating.
