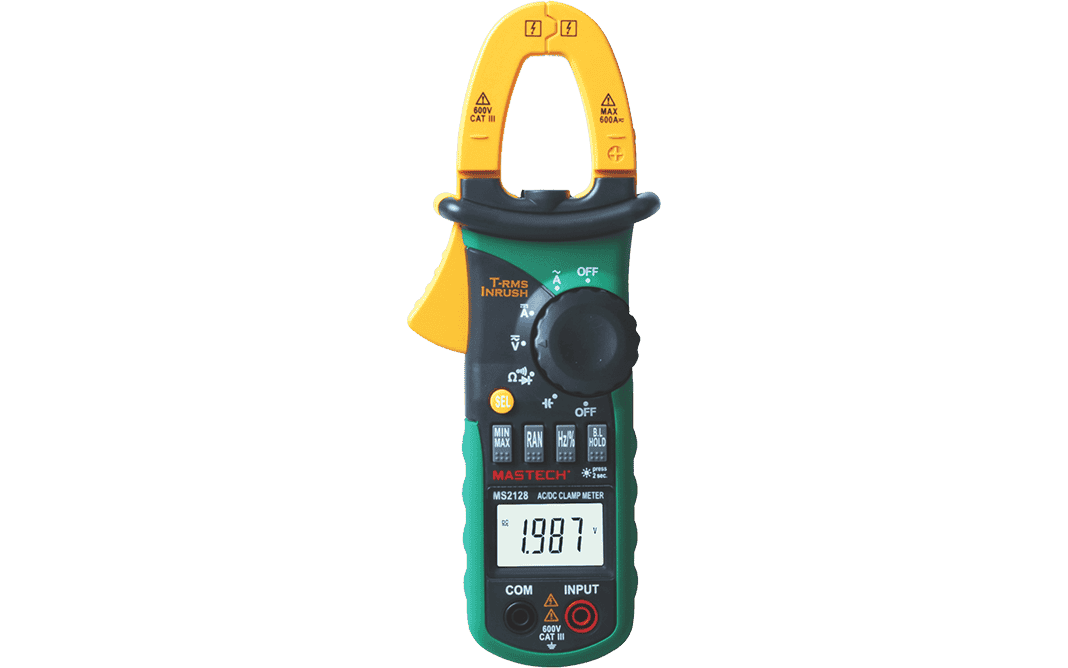

Mastech MS2128 Digital AC/DC Clamp Meter

Description

The Mastech MS2128 Digital AC/DC Clamp Meter is a versatile and reliable tool designed for a wide range of electrical testing needs. A key feature is its True RMS measurement capability, which provides accurate readings even with non-sinusoidal or distorted waveforms.

Key Features

• Measurements: The MS2128 can measure multiple parameters, including AC/DC voltage (up to 600V), AC/DC current (up to 600A), inrush current, resistance (up to 66MΩ), capacitance (up to 66mF), and frequency.
• Inrush current: The meter has a special inrush current measurement feature (100ms current integral), useful for capturing the high starting current of motors and other inductive loads.
• True RMS: Its True Root Mean Square measurement capability is essential for accurately measuring AC signals with non-linear loads.
• Display: It features a 6600-count digital LCD with a backlight for easy reading in various lighting conditions.
• Convenience features: It includes Max/Min measurement functions to capture the highest and lowest readings, a data hold function to freeze a measurement on the display, and an auto-power-off function to conserve battery life.
• Safety: The MS2128 is rated for CAT III 600V, providing safety for use in residential and commercial electrical environments.
• Jaw opening: The clamp has a $\Phi$26mm / 1.0-inch jaw opening, suitable for small to medium-sized conductors.
