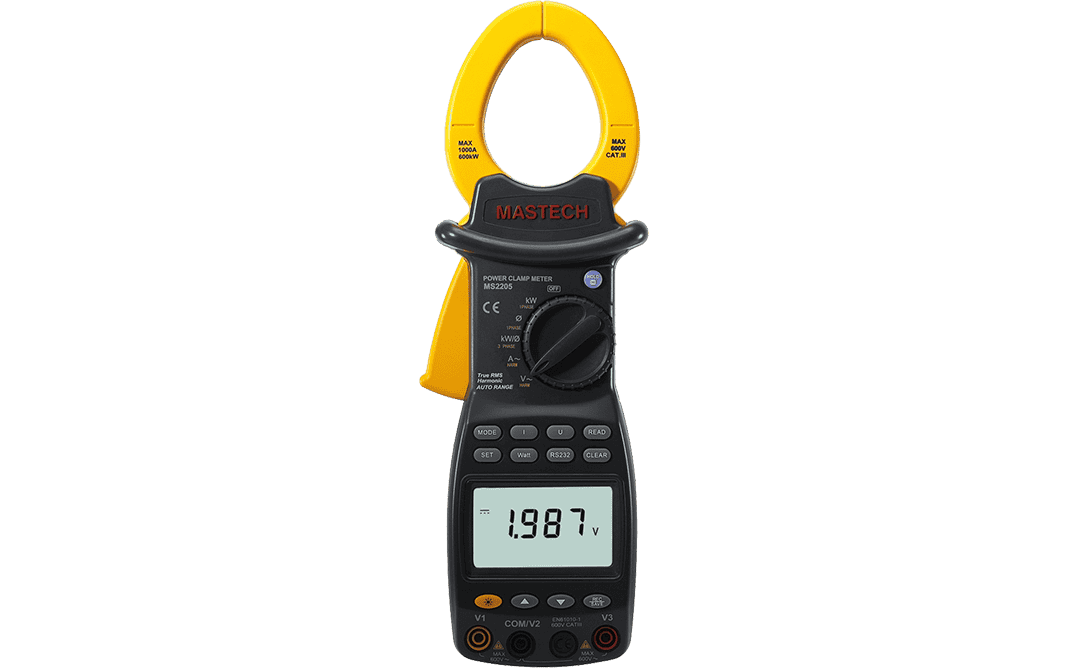

Mastech MS2205 Three-Phase Digital Power Clamp Meter

Description

The Mastech MS2205 Three-Phase Digital Power Clamp Meter with Harmonics Measurement is a professional-grade handheld instrument for measuring and analyzing electrical parameters in complex power systems. It is a versatile tool for diagnosing issues, monitoring energy efficiency, and analyzing power quality in single-phase and three-phase configurations.

Key Features

• Harmonic analysis: A key feature of the MS2205 is its ability to measure harmonics from the 1st up to the 20th order, which helps in diagnosing power quality issues.
• True RMS: The meter provides True RMS measurements for both AC voltage and current, ensuring accuracy even with non-sinusoidal or distorted waveforms.
• Large jaw opening: The robust clamp jaw has a $\Phi$50mm (2.0") opening, making it suitable for larger conductors.
• Data logging: The MS2205 can store up to 100 groups of measurement data, allowing for later analysis.
• PC interface: An RS232 interface and analysis software are included for transferring logged data to a computer.
• Dual display: A large, backlit dual LCD with a 6000-count resolution displays multiple parameters simultaneously.
• Safety rating: It is rated for CAT III 600V, suitable for use in most commercial and industrial environments.
• Other features: The meter also includes automatic and manual ranging, a data hold function, a backlight, and an auto-power-off feature.
