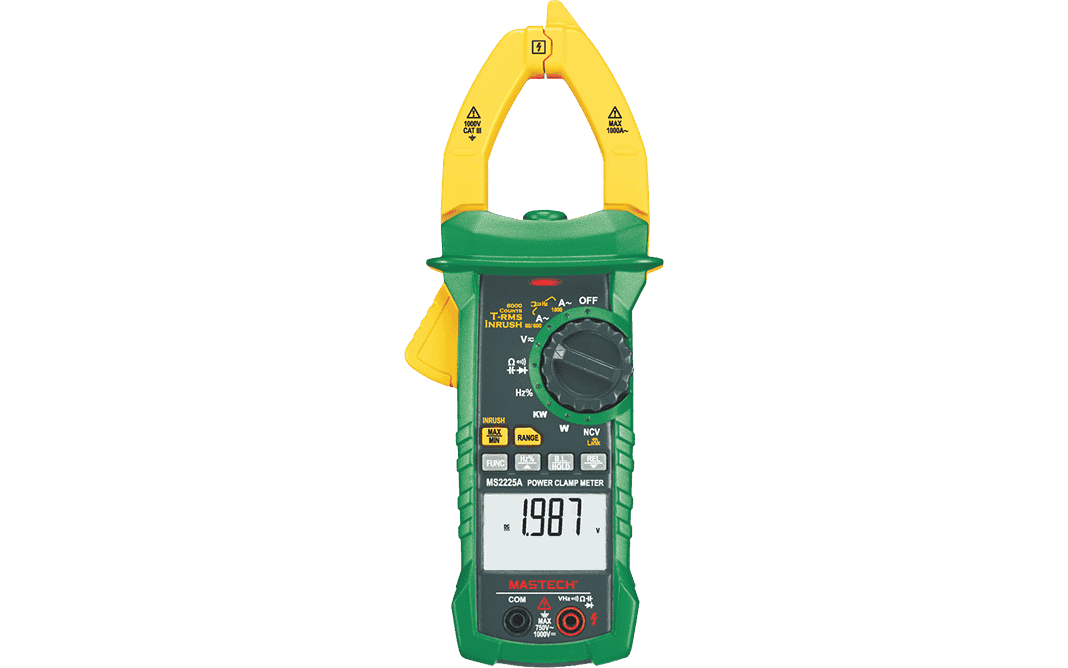

Mastech MS2225A Auto Ranging Single Phase Power Clampmeter

Description

The Mastech MS2225A Auto Ranging Single Phase Power Clampmeter is a versatile tool for electrical professionals and enthusiasts. It is capable of measuring multiple parameters, including power, and features wireless connectivity for remote monitoring.

Key Features

• Multifunctional measurement: Measures AC/DC voltage, AC current, resistance, capacitance, frequency, and various power factors.
• True RMS: The clamp meter uses True RMS (Root Mean Square) technology, which provides accurate readings on both linear and non-linear loads.
• Auto and manual ranging: You can choose between automatic and manual ranging for greater control and flexibility in your measurements.
• Max jaw opening: The clamp has a 40mm or 1.6-inch jaw opening, allowing it to measure large conductors.
• Display: Features a 6,000-count backlit display with a worklight to ensure visibility in low-light conditions.
• Wireless APP connection: This allows for remote monitoring and data logging via a smartphone app.
• Inrush current measurement: This function allows the meter to capture the maximum current draw when equipment is first powered on.
• Data logging: Allows for the storage of up to 28 groups of measurements.
• Safety features: The device includes a non-contact voltage (NCV) detection function for increased safety during use.
• CAT IV safety rating: The MS2225A has a safety rating of CAT IV 600V and CAT III 1000V.
