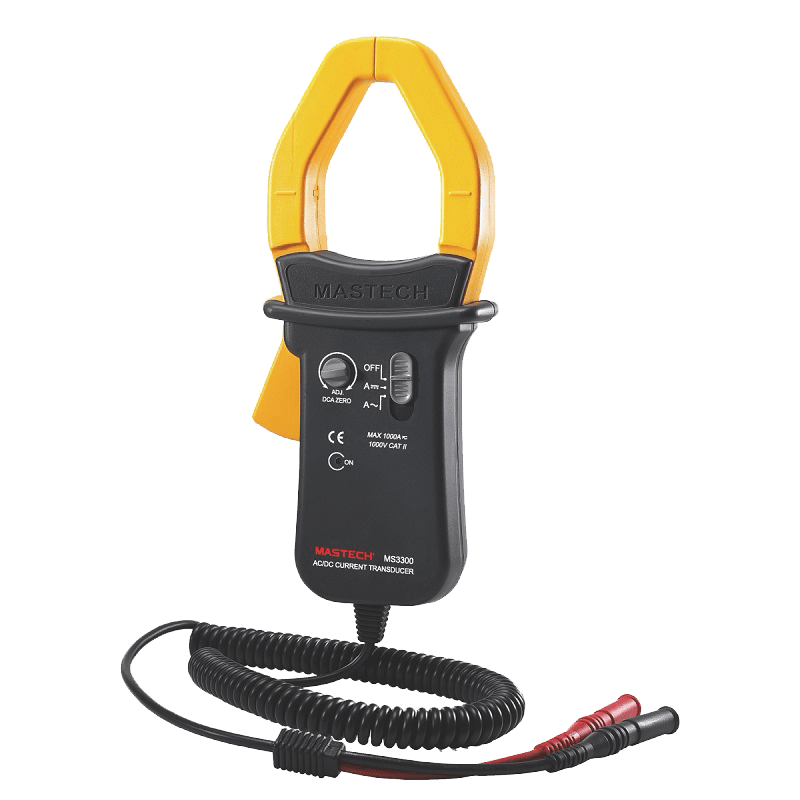

Mastech MS3300 Special Application Clamp Meter

Description

The Mastech MS3300 is an AC/DC current clamp transducer with True RMS measurement capabilities. It is designed for measuring high currents up to 1000A in both AC and DC applications and can be used with a standard digital multimeter. The large jaw opening makes it suitable for use in industrial settings.

Key Features

• Measurement type: Current clamp transducer
• Current range: 1A to 1000A (AC and DC)
• True RMS: Yes
• Jaw opening: 55mm / 2.2 inches
• Output: 1mV per 1A (AC and DC)
• Frequency: 50–60Hz
• DC current zero adjust: Yes
• Safety rating: CAT II 1000V
• Altitude: 2000m
• Operating temperature: 0°C to 40°C
• Storage temperature: -10°C to 50°C
• Power supply: 1 x 9V 6F22 battery
• Dimensions: 256 x 104 x 47mm (approx. 10.1 x 4.1 x 1.85 inches)
• Weight: Approx. 520g (1.1 pounds)
• Certificates: RoHS, CE
