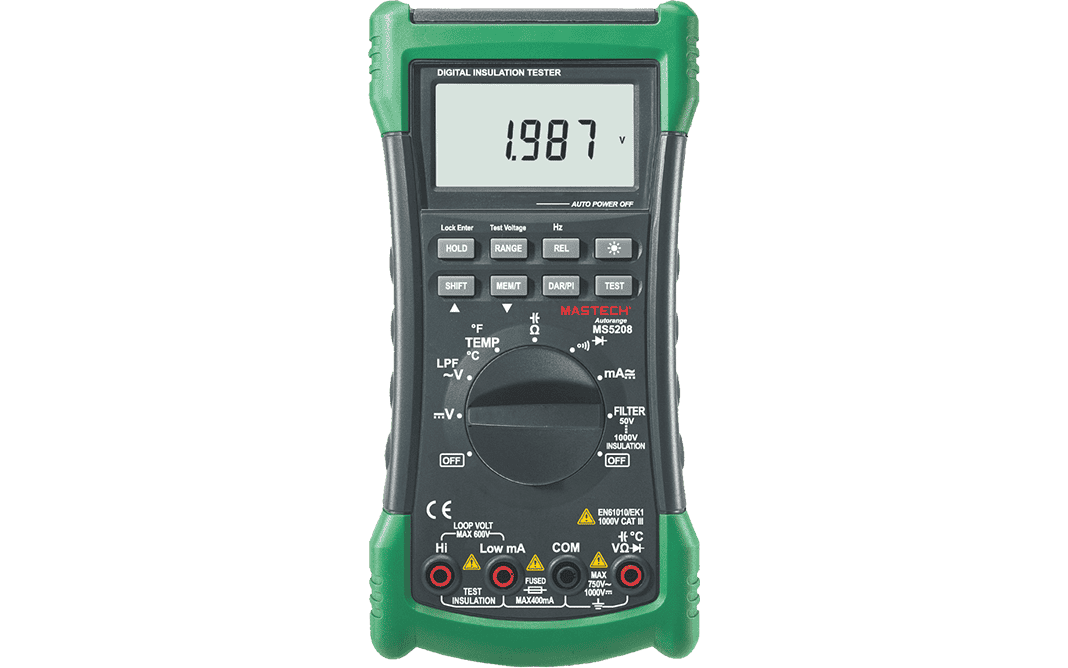

Mastech MS5208 Professional Grade Digital Multimeter

Description

The Mastech MS5208 is a professional-grade digital multimeter (DMM) specifically designed for special applications that require insulation testing. It is not a general-purpose DMM, but rather a specialized tool combining a full-featured multimeter with a high-voltage insulation resistance meter (or "Megger").

Key Features

• Electrical installation and maintenance: Testing the insulation integrity of wiring, cables, and electrical components.
• HVAC (heating, ventilation, and air conditioning): Technicians can use it to test insulation resistance and monitor temperature in HVAC systems.
• Industrial equipment evaluation: The combination of True RMS measurement and insulation testing makes it useful for evaluating industrial circuits and equipment.
• Automotive diagnostics: Used to check battery voltage, continuity, and perform insulation checks on a vehicle's electrical systems.
• Insulation Resistance Measurement (Megger): This is its primary special application. It can test insulation up to 2GΩ at five different selectable test voltages: 50V, 100V, 250V, 500V, and 1000V.
• DAR/PI Modes: It automatically calculates the Polarization Index (PI) and Dielectric Absorption Ratio (DAR), which are critical diagnostic tools for assessing the quality and condition of electrical insulation.
• Temperature measurement: With a K-type thermocouple, it can measure a wide temperature range, from -30°C to 1300°C (-22°F to 2372°F).
• True RMS: The True Root Mean Square feature allows for accurate measurement of AC voltage and current, even on non-linear or distorted waveforms.
