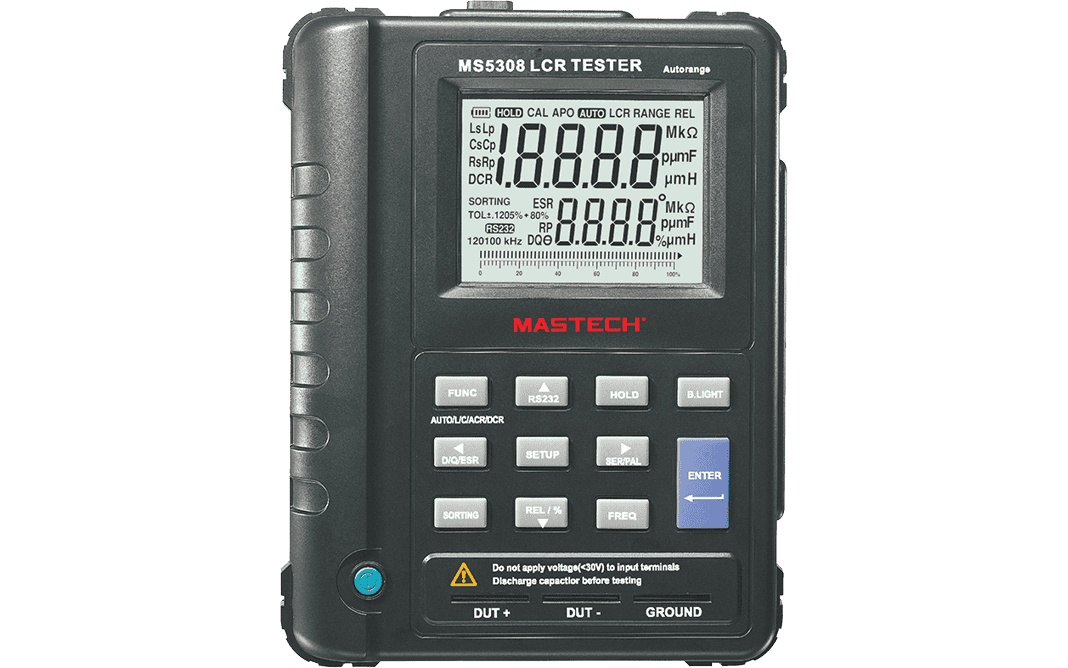

Mastech MS5308 LCR Meter

Description

The Mastech MS5308 LCR meter is a professional, portable device for measuring inductance (L), capacitance (C), and resistance (R). Designed for accuracy, it is a versatile tool for professionals and electronics enthusiasts in a variety of applications, such as quality control, maintenance, and educational settings.

Key Features

• Automatic functions: The device features automatic component identification and automatic measurement range selection.
• Dual LCD display: It has a dual display, with a 19,999-count main display and a 1,999-count secondary display. This allows you to view the primary reading and a secondary parameter, such as dissipation factor (D), quality factor (Q), or equivalent series resistance (ESR).
• Selectable test frequencies: For AC measurements, the MS5308 offers five test frequencies: 100 Hz, 120 Hz, 1 kHz, 10 kHz, and 100 kHz.
• AC and DC measurement: Unlike standard multimeters, this LCR meter provides both AC and DC modes for resistance measurements.
• Series and parallel modes: You can select between series and parallel measurement modes to achieve more accurate results depending on the component being tested.
• Connectivity: The device includes an RS232 interface for connecting to a PC, which allows for data logging and analysis using compatible software.
• Portability and power: The handheld, compact design is powered by eight AA batteries and a 9V battery. It includes an auto power-off function to conserve battery life.
