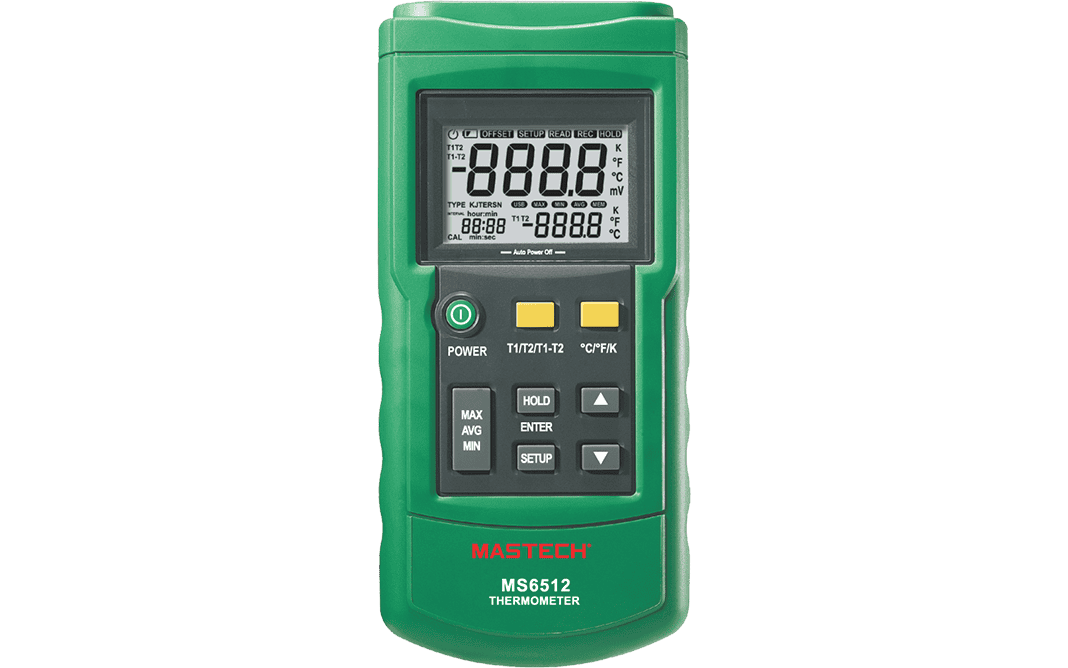

Mastech MS6512B Contact Thermometer

Description

The Mastech MS6512B is a dual-channel, data logging contact thermometer, known for its industrial applications and compatibility with multiple thermocouple types. An upgrade to the original MS6512 model, the MS6512B includes a USB interface for data transfer to a computer. This feature allows for the storage and analysis of temperature data over time, making it suitable for applications that require comprehensive temperature monitoring.

Key Features

• Dual-channel measurement: Measures temperature from two points at once, displaying the readings simultaneously as T1, T2, and T1-T2 (the difference between them).
• Data logging: Stores up to 9,999 groups of thermocouple temperature data for later analysis via its USB interface.
• Thermocouple compatibility: Compatible with a wide range of thermocouple types, including K, J, T, and E, offering a broad temperature measurement range.
• Upper/lower limit alarms: Allows users to set high and low temperature alarms with default values of 1300°C and -200°C, respectively.
• MAX/MIN/AVG/DIF readings: Displays maximum, minimum, average, and difference (DIF) of the temperatures measured.
• Large backlit LCD: Features a large, backlit LCD screen for clear viewing of all channels, even in dim lighting.
• Adjustable compensation: Includes a compensation function (ADJ) to account for probe error.
• Auto power-off: Automatically turns off after 15 minutes of inactivity to conserve battery life, a function that can be manually canceled.
• USB interface: Provides data transfer capabilities and an alternative power source.
