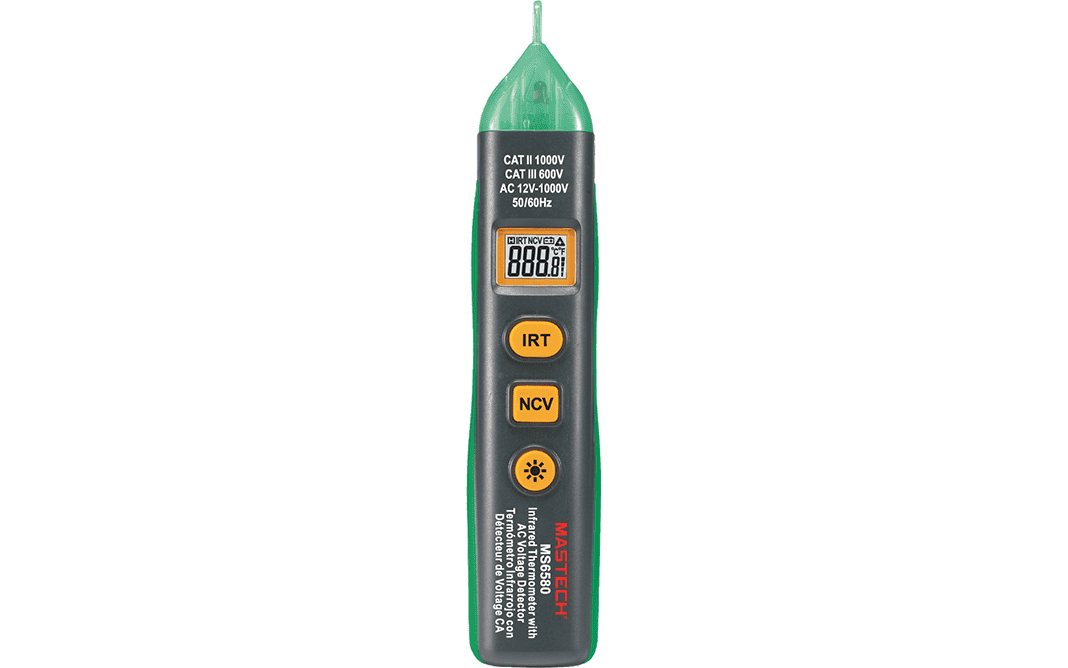

Mastech MS6580B Versatile Electrical Tester

Description

The Mastech MS6580B is a versatile electrical tester that combines a non-contact voltage (NCV) detector with a laser infrared thermometer in a single, compact device. It is used for safely detecting the presence of AC voltage and measuring surface temperature without physical contact.

Key Features

• Voltage range: It can detect AC voltage in the range of 12V to 1000V.
• Adjustable sensitivity: Features four adjustable levels of sensitivity for detecting voltage.
• Feedback: Provides clear feedback through a "beep" sound and an LED indicator.
• Temperature range: Measures surface temperatures from -20°C to 330°C (-4°F to 626°F).
• Targeting: A built-in laser pointer is used for accurate targeting during temperature measurement.
• Fast response: The device has a rapid response time of 0.5 seconds.
• Optical resolution: Features an optical resolution of 4:1.
• Safety rating: The device has safety certifications, including CAT II 1000V and CAT III 600V.
• Display: A backlit LCD display provides clear readings in various lighting conditions.
• Portability: It has a compact, pen-like design that is lightweight and easy to carry.
• Additional functions: Includes a built-in work light for use in low-light conditions, a data hold function to freeze measurements, and an auto power-off feature to conserve battery life.
• Power: Runs on two AAA batteries.
