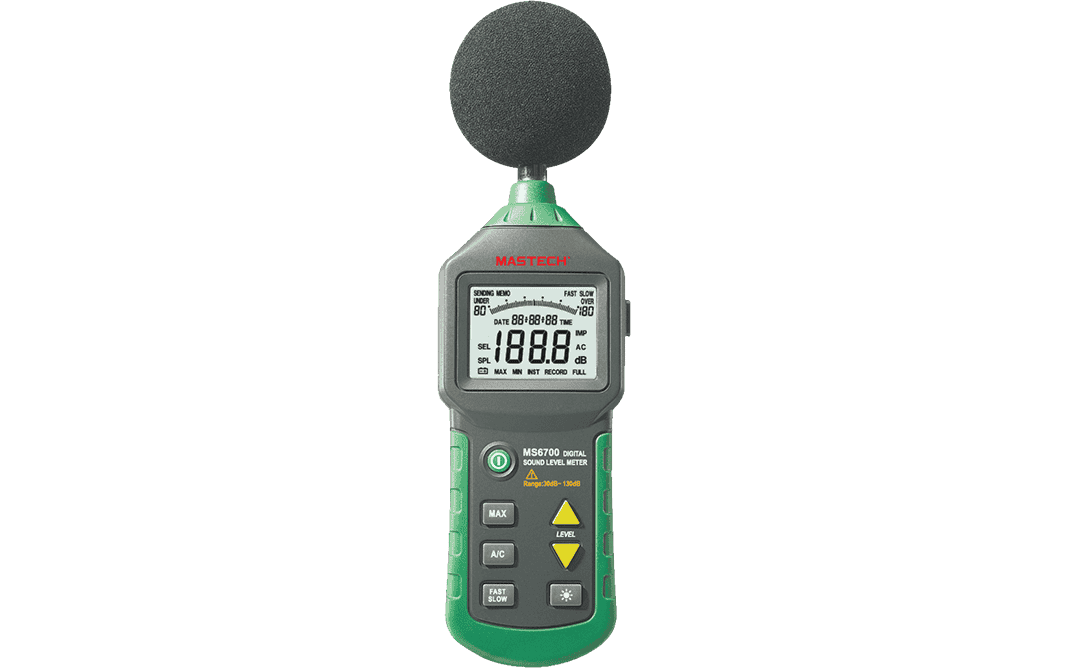

Mastech MS6700 Digital Sound Level Meter

Description

The Mastech MS6700 Digital Sound Level Meter is a versatile and reliable handheld device used to measure sound pressure levels in various environments. It provides accurate noise level readings for professionals in fields such as industrial safety, environmental monitoring, and audio engineering.

Key Features

• Measurement range: 30 to 130 dB, with an accuracy of ±1.5 dB, suitable for a wide range of noise levels, from quiet rooms to loud machinery.
• Dynamic range: 50 dB for each of its six selectable ranges.
• Frequency range: Measures frequencies from 31.5 Hz to 8 kHz.
• Weighting: Offers both A and C frequency weighting options.
• Response time: Users can choose between Fast (125 ms) and Slow (1 sec) response times to capture real-time or averaged readings.
• Display: Features a 4-digit backlit LCD with a 2000-count display and an analog bar indicator, providing both precise numerical and visual feedback.
• Auto and manual ranging: The unit can automatically select the best measurement range or be set manually for specific applications.
• Data hold: The MAX and Data Hold functions allow the user to freeze the highest and current readings on the display.
• Signal output: Includes both AC and DC auxiliary outputs, enabling connection to other devices like a frequency analyzer or recorder for further analysis.
