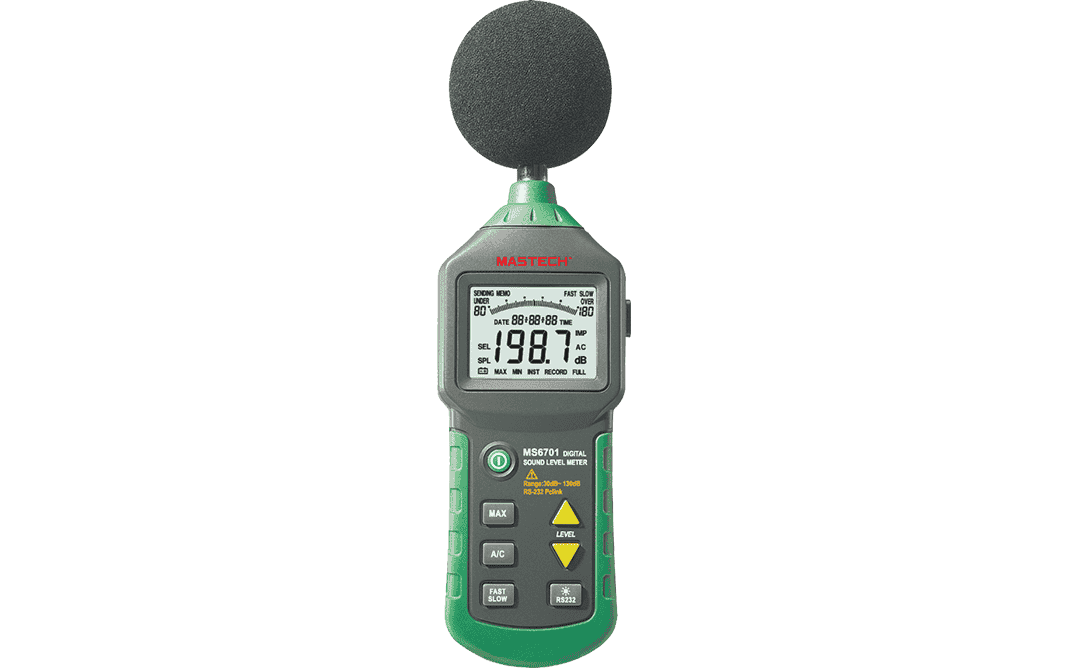

Mastech MS6701 Digital Sound Level Meter

Description

The Mastech MS6701 Digital Sound Level Meter is a versatile and advanced tool for measuring sound pressure levels in a variety of environments. It is suitable for applications in industrial, commercial, and residential settings where precise noise monitoring is required.

Key Features

• Measurement range: 30 to 130 dB, covering a broad spectrum of sound levels.
• Frequency range: Measures sound frequencies from 30 Hz to 8 kHz.
• Response time: Offers both Fast (125ms) and Slow (1 sec) response settings to capture either real-time sound levels or a time-averaged reading.
• Data logging: A key feature of the MS6701 is its data logging capability, which can store up to 16,000 groups of measurements for later analysis.
• Interfaces: It is equipped with RS-232 and USB interfaces for connecting to a PC, allowing for easy data transfer and long-term monitoring with dedicated software.
• Display: Features a backlit LCD with a 2000-count display for clear and accurate readings, even in low-light conditions. An analog bar provides a visual, real-time indication of sound levels.
• Operating modes: Supports both Auto and Manual ranging for flexible measurement settings.
