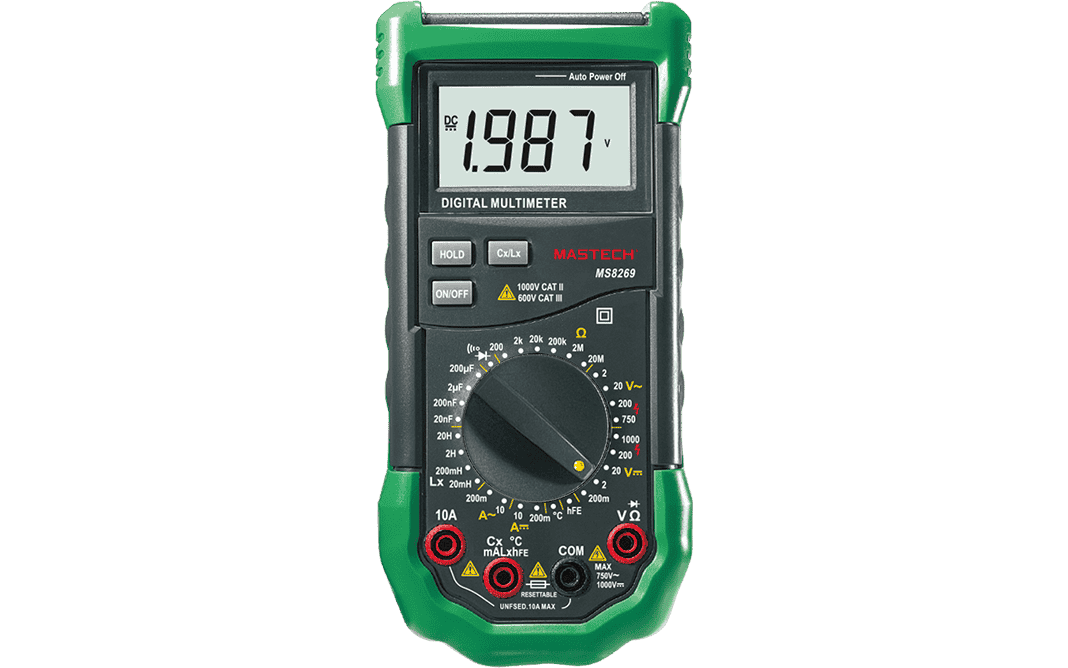

Mastech MS8269 Manual-Ranging Digital Multimeter

Description

The Mastech MS8269 is a manual-ranging digital multimeter that combines the functions of a standard multimeter with an LCR meter, allowing it to measure inductance, capacitance, and resistance. It is well-suited for professionals and electronics hobbyists who need to test a wide range of components.

Key Features

• Manual ranging: Unlike auto-ranging multimeters, the MS8269 requires the user to manually select the measurement range for each task. This can be a benefit for users who prefer precise control and may be more familiar with the expected values of the circuits they are testing.
• Temperature measurement: It includes a K-type thermocouple input for measuring temperatures from -20°C to 1000°C (-4°F to 1832°F).
• Comprehensive testing: Other functions include a transistor (hFE) test socket, diode test, and continuity buzzer.
• Display: A large 2000-count LCD display shows measurements clearly.
• Data hold: This function freezes the current reading on the display for easier recording and analysis.
• Auto power-off: Helps conserve battery life by automatically shutting off the meter after a period of inactivity.
• Resettable fuse protection: A safety feature that protects the device from overcurrents.
• Safety rating: The MS8269 is certified with a CAT II 1000V and CAT III 600V safety rating.
