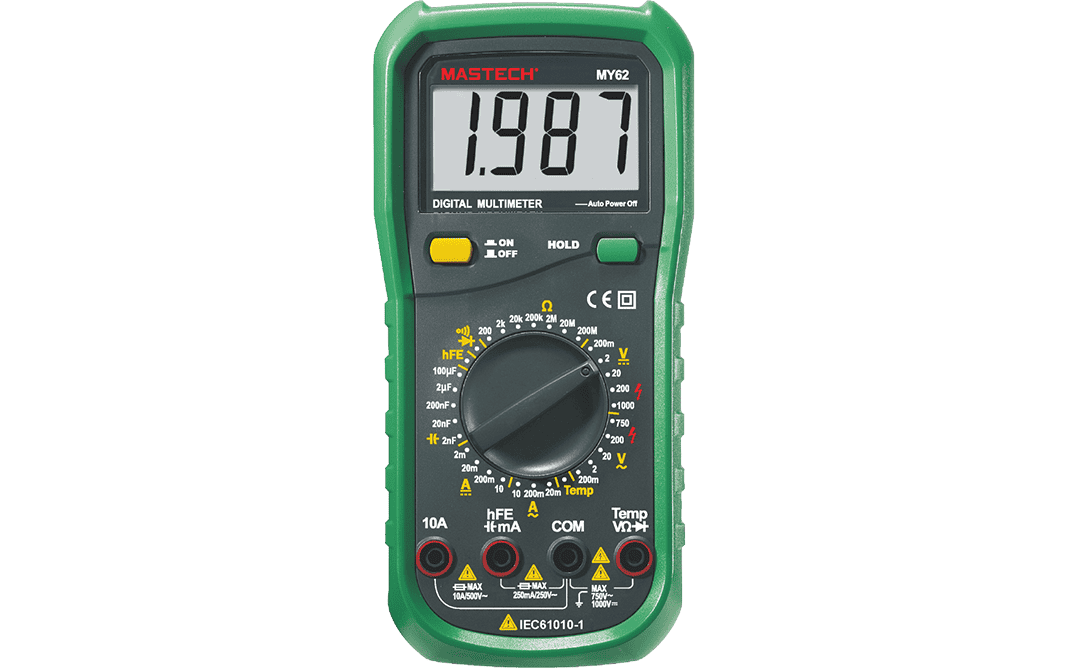

Mastech MY62 Manual Ranging Digital Multimeter

Description

The Mastech MY62 is a manual-ranging digital multimeter that provides a variety of measurement functions for electrical testing. Unlike auto-ranging meters that automatically detect the scale, the user must manually select the appropriate range using a rotary switch for each measurement.

Key Features

• DC Voltage: Capable of measuring direct current (DC) voltage up to 1000V.
• AC Voltage: Measures alternating current (AC) voltage up to 750V.
• DC and AC Current: Measures both direct and alternating current up to 10A, with separate ports for high current measurements.
• Resistance: Offers multiple ranges for resistance measurement, typically up to 200MΩ.
• Capacitance: Includes several ranges for measuring capacitance, up to 20µF.
• Temperature: Features a temperature measurement function, usually requiring a K-type thermocouple probe (not always included).
• Continuity Buzzer: An audible alert for quick checks of low-resistance connections.
• Diode Test: Checks the functionality and polarity of diodes.
• Transistor (hFE) Test: Includes a dedicated socket for testing the DC current gain of NPN and PNP transistors.
