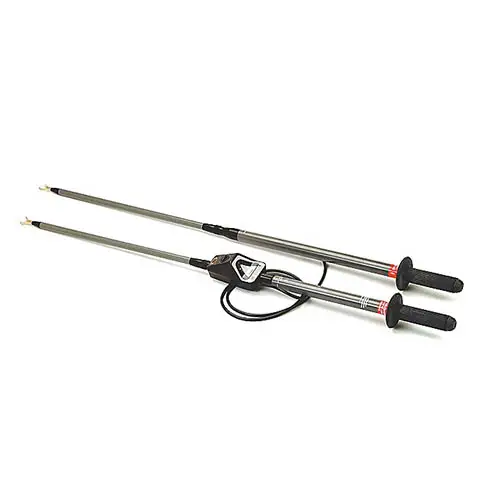

DescriptionThe Megger 510836-1 DETEX LED Phasing Tester is a high-voltage testing tool used by electrical professionals to verify phase relationships and check for the presence of voltage on grounded and ungrounded AC systems. Its design prioritizes visibility and safety during use in poor lighting conditions. |
Key featuresLED indication: The tester uses a bright LED indicator to signal the presence of nominal system voltages, which is easily visible even in dim or dark environments.Voltage range: It is capable of testing nominal system voltages ranging from 4.16 kV to 34.5 kV (phase-to-phase). The indicator has calibrated markings at 0, 4.2, 7.2, 13, 25, and 35 kV. Two-pole design: The instrument consists of two fixed-length, 43-inch poles with hand guards for user safety. The poles are connected by a flexible, insulated cable that can span up to 7 feet between two energized phases. Piezo verifier compatibility: While this model does not have a self-test feature, it can be checked for proper operation using a separate piezo verifier before and after each test. Continuous monitoring: The device provides continuous monitoring for voltage without an on/off switch, ensuring it is always ready to detect voltage within its range. |
