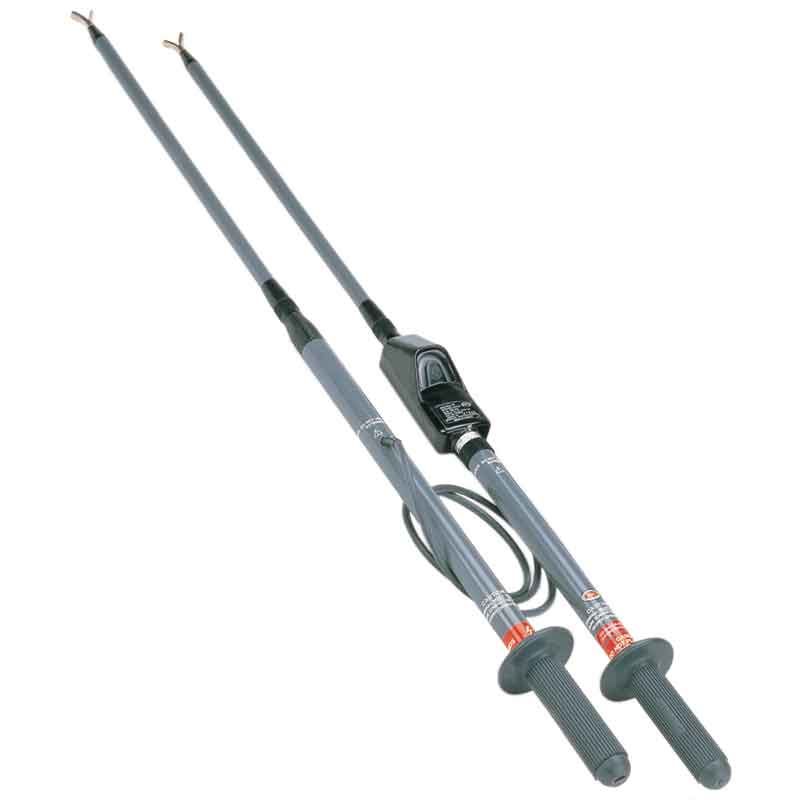

Megger 510836 -1 DETEX LED Phasing Tester, 4.16 to 34.5kV

Description

The Megger 510836-1 DETEX LED Phasing Tester is a high-voltage testing tool for electrical professionals that detects nominal voltages from 4.16 to 34.5 kV. It is used for tasks like checking phase connections, testing fuses, and verifying the absence of voltage on de-energized lines.

Key features

• LED indicator: The bright LED is visible in both indoor and poor lighting conditions.
• Phasing and voltage detection: It is designed for both two-pole phasing tests (between two energized phases) and single-pole voltage detection (phase-to-ground).
• Nominal voltage indication: The 3.5-inch analog scale provides an approximate indication of the nominal system voltage rather than an exact measurement.
• Physical design: The tester consists of two fixed-length poles (43 inches each) with hand guards for safety.
• Insulated connecting cable: The cable is 54 inches long and provides a 7-foot span for testing between two energized phases.
• No on/off switch: The device offers continuous monitoring and is always on, with no switch to turn it off.
• Compatibility: It is suitable for both grounded and ungrounded AC systems.
