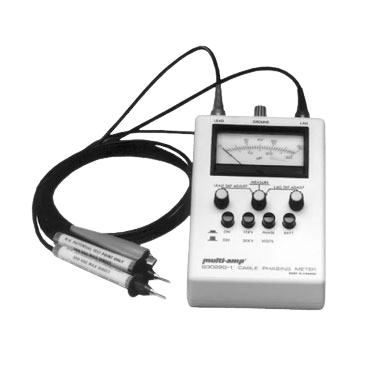

Megger 830220-1 Multi-Amp Cable Phase Meter, 30kV

Description

The Megger 830220-1 is a cable phasing meter that provides a safe and quick method for measuring voltage, determining phase rotation, and phasing out cables in underground electrical distribution systems. It operates by connecting to the capacitive test points that are built into elbow connectors on high-voltage cable terminators.

Key features

• Safe operation: The meter operates at low voltage, ensuring user safety.
• Voltage measurement: It can measure system voltages up to 30 kV.
• Determines phase rotation: The meter is designed to determine the phase rotation of cables.
• Battery-powered: The unit is battery-operated using 4 AA batteries, offering approximately 300 hours of operation.
• Analog display: It features an analog meter with a manual selection for one of two voltage ranges: 0-15 kV and 0-30 kV.
• Tap capacitance setting: The meter has an adjustable tap capacitance setting ranging from 0.4 to 3 pF.
• Included accessories: It comes with a ground lead, two measuring leads, and a leather carrying case.
• Rugged construction: The meter is built to be durable and portable.
