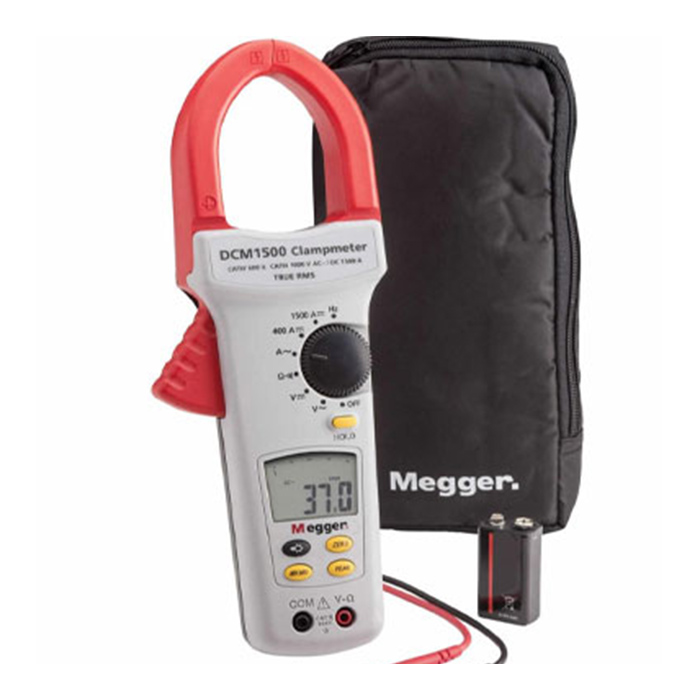

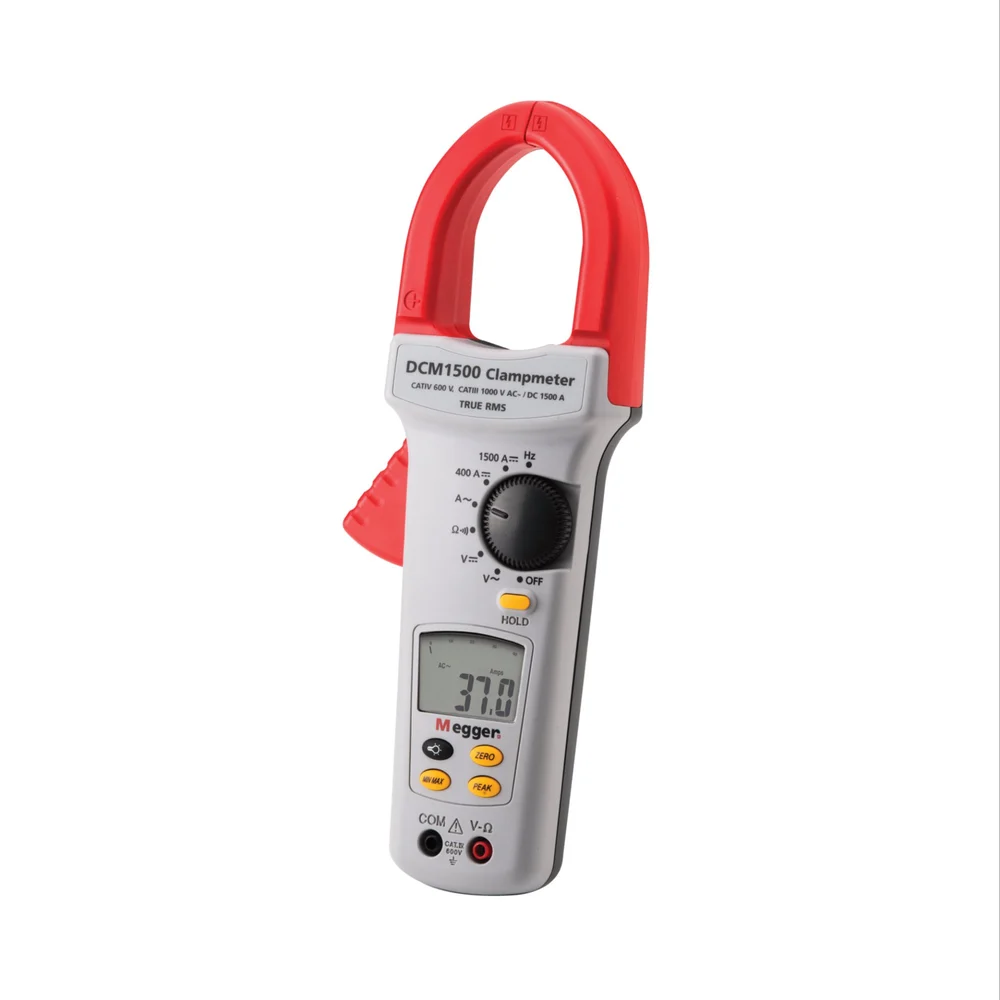

Megger DCM1500 1500 A TRMS Clamp Meter

Description

The Megger DCM1500 is a 1500 A True RMS (TRMS) clamp meter designed for measuring both AC and DC current. It is used for the installation, maintenance, fault-finding, and monitoring of large electrical systems and equipment.

Key features

• High current and voltage range: The meter can measure up to 1500 A AC or DC, 750 V AC, and 1000 V DC.
• True RMS (TRMS): This feature ensures accurate measurements of both sinusoidal and non-sinusoidal waveforms, which are often created by modern complex electrical loads.
• Large jaw size: The clamp jaw can open wide enough to handle large, uninsulated conductors, with a maximum conductor size of 51mm.
• Versatile measurements: In addition to current and voltage, the DCM1500 can also measure resistance, continuity, and frequency.
• Display and interface: It features a large, easy-to-read LCD display with a backlight for working in poorly lit areas. A high-resolution digital bar graph helps indicate trends and fluctuations in measurements.
• Data functions: The meter includes peak, min/max, and data-hold functions to capture and analyze measurements.
• Safety rating: It is rated to IEC 61010-1 CAT IV 600V, and is drop-tested to 1.2 m, providing a safe working distance with a tactile barrier below the jaws.
• Auto-off: The meter automatically powers off after 30 minutes of inactivity to save battery life, a feature that can be disabled for longer measurements.
